MICROMAG GSM frequency antenna with magnetic base for easy mounting. The MICROMAG is an omni-directional antennasuitable for use with most GSM GPRS devices with a radio band frequency from 868MHz to 915MHz. Standard options are 5m of cable with an SMA connector. Other standard radio connectors and cable lengths are available on request.
The MICROMAG is a cellular base station antenna with a GSMÂ frequency range of 868 to 915MHz. The antenna is supplied with a rare eath magnetic base for quicke mounting to metallic surfaces. The MICROMAG antenna is ideal for improving the GSM and GPRS communications on the GRD and TCG240D GSM/GPRS data logger/SMS alarm units and any other radio devices that use the 868 to 915MHz frequency bands.
Specifications
| Frequency: | GSM |
| Polarity: | Vertical |
| Gain: | 2 dbi |

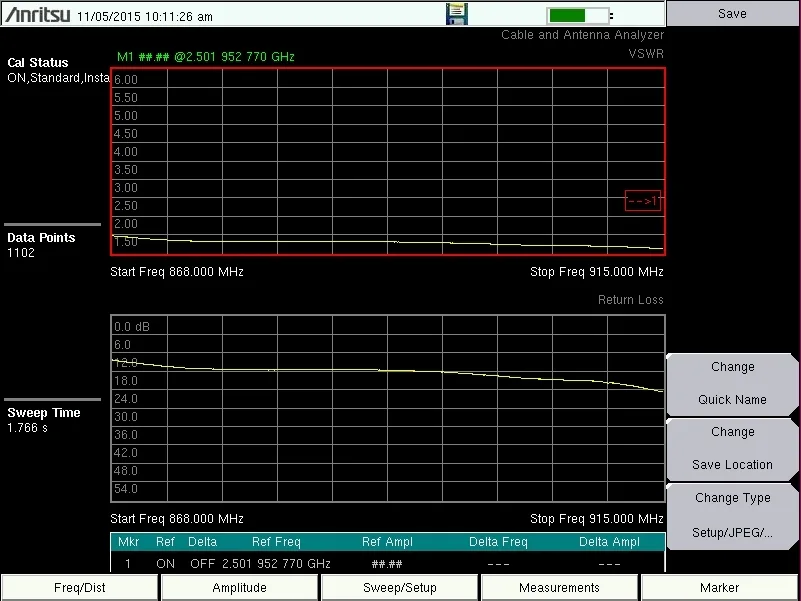

| VSWR: | 1.5 to 1 |
| Dimensions: | 80mm height, 25mm diameter |
| Cable: | 5m (others on request) |
| Connector: | SM connector, others available on request |
| Mounting: | Rare earth magnet |
| Power: | 25 Watts |
| Impedance: | 50 Ohms |
Standard cable is fitted with an SMA connector but any standard radio antenna connectors can be fitted on request.
MICROMAG
£22.00
ANT-EXT-15CM-SMAMRA-SMAF
£20.23
