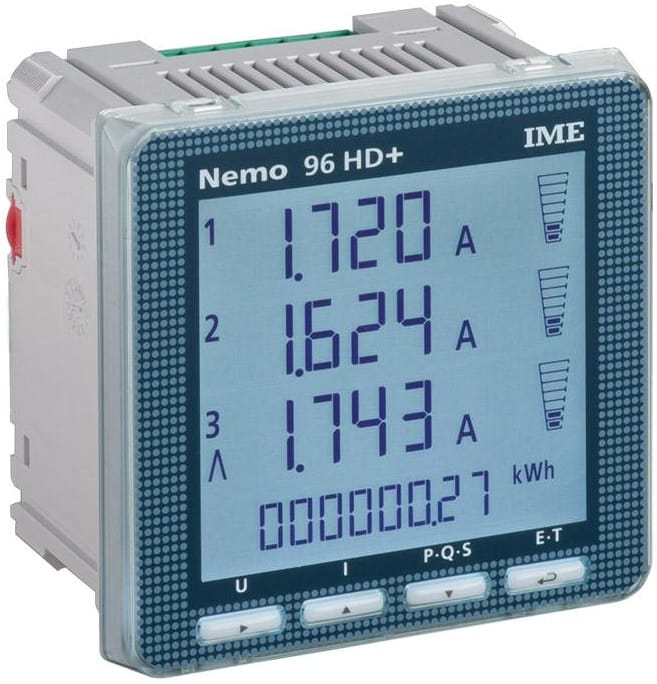

Description

Features

• 96 x 96mm flush mounting
• Single phase or 3 phase (3 or 4 wire) network unbalanced load
• Built-in energy pulse output
• Four slots for plug in modules
• Customisable display page
• Wide range of measured parameters – see table below
• Backlit LCD display
• –/1A or –/5A current transformer operated
• Active energy class 0.5 (EN62053-21)
• Reactive energy class 2 (EN62053-23)
• 3-phase – 80…500V 50/60Hz measured voltage
• Single phase – 50…290V 50/60Hz measured voltage
• Auxiliary 80…265vAC, 110…300vDC
• Programmable CT ratio 1…9999 (max CT primary 50kA/5A or 10kA/1A)
• Programmable VT ratio 1…10 (max VT primary 1200V)
• Programmable display contrast and backlight intensity
• Field updatable firmware
• Resettable parameters – min + max voltage, current demand, current max demand, active, reactive, apparent power max demand, hours run, partial active energy, partial reactive energy

Options:

4 plug-in module expansion slots for increased functionality.

A complete choice of modules is available below.
