MCV2 - RS232 to RS485/422 Converter

MCV2 – RS232 to RS485/422 Converter

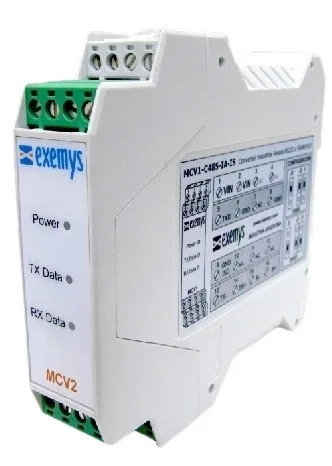

The MCV2 converts an RS232 to RS485/RS422 signal with galvanic isolation between serial channels. The MCV2 is ideal for long distance communications and can be used in electrically noisy environments. The units include removeable terminal blocks and are DIN Rail mountable. Power supply 10-30vDC.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

MCV2-C485 Converter

Description

Features

  • Galvanic isolation, up to 250Vms (1 min).
  • Power supply: 10 to 30vDC.
  • Polarization resistors included.
  • Surge protection, in line RS485 and RS422.
  • Industrial fireproof case with DIN Rail mounting.
  • LEDs for power and information flow indication.
  • Removeable terminal block connectors
  • Baud rate up to 115200 baud.
  • Up to 32 nodes in the same network.



Applications

  • Points of Sale.
  • Industrial Automation.
  • General Applications for Data Acquisition.
  • Systems of Security and Accesses Control.



Product

Ref

Price

Product Description

MCV2-C485-IA-IS

£165.34

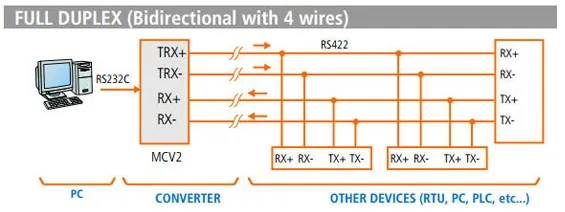

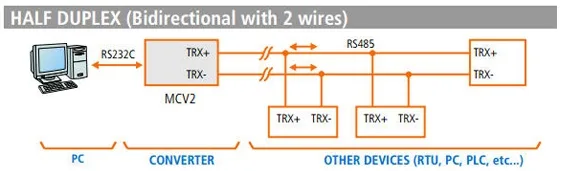

RS232 to RS485/RS422 Isolated converter. Isolated 4-wire full duplex or 2-wire half duplex Industrial Surge Protection. DIN Rail Mounting.
