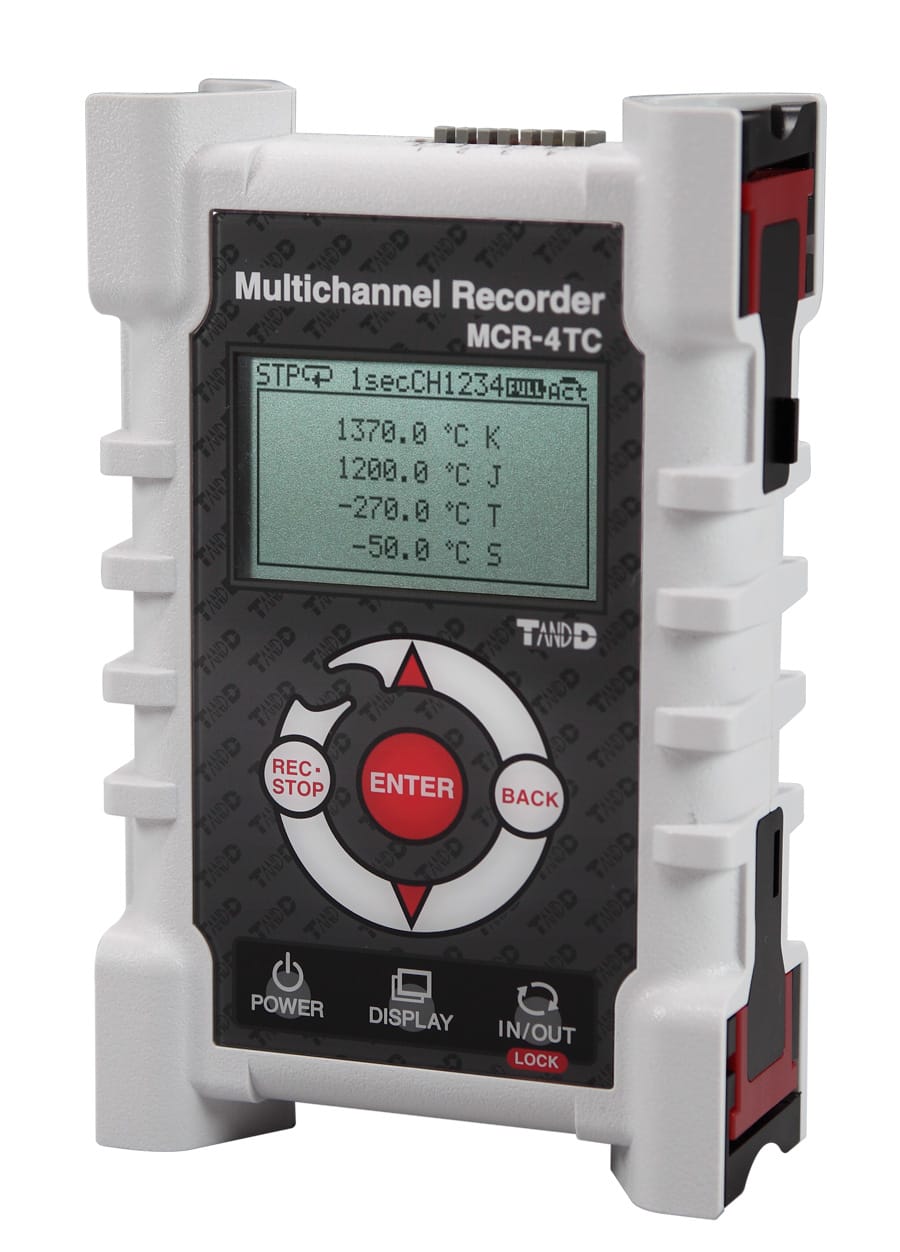

MCR-4TC High Speed Temperature Data Logger suitable for up to 4 thermocouple inputs (Types K, J, T, S and R). Complete kit supplied with windows software for programming and data download, USB download cable and 2 x AA batteries. Units include an integrated LCD and internal memory for up to 960,000 readings.
£360.16
The MCR-4TC Multichannel Temperature Recorder is designed to measure a wide range of temperatures using a thermocouple sensor. Up to four MCR loggers can be coupled together to allow for a maximum of 16 channels. After it measures and records temperature, the data can be easily displayed in graph form, enabling the immediate on-the-spot checking of continually-changing data.
When the bodies of multiple units are connected, the MCR-4TC at the far left side will be automatically designated as the Master and all other connected MCR-4TC units will be designated as Slaves. By starting recording on the Master unit, all connected Slave units will start recording at the same time.
| Measurement Channels | Temperature 4ch | |
| Input Method | Scanning Method, Differential Input, Each Channel Isolated | |
| Compatible Sensors | Thermocouple: Type K, J, T, S, R | |
| Measurement Units | °C, °F | |
| Measurement Range | Type K: -270 to 1370°C Type J: -210 to 1200°C Type T: -270 to 400°C |
Type S: -50 to 1760°C Type R: -50 to 1760°C |
| Input Impedance | Approx. 1 MΩ | |
| Accuracy | Thermocouple Measurement (Sensor inaccuracies not included) Type K, J, T: ±(0.5 + 0.003 × |t|)°C at -100°C or above Type S, R: ±(1.5 + 0.003 × |t|)°C at 100°C or above |t| = absolute value of measurement in °C Cold Junction Compensation: ±0.5°C (10 to 40°C), ±0.8°C (other temperatures) |
|
| Measurement Resolution | 0.1°C | |
| Recording Method | Instantaneous or Average | |
| Recording Interval | 100, 200, 500 ms, 1, 2, 5, 10, 15, 20, 30 sec. 1, 2, 5, 10, 15, 20, 30, 60 min. |
|
| Logging Capacity | When recording 1 channel: up to 960,000 readings/ch When recording 2 channels: up to 480,000 readings/ch When recording 3 channels: up to 320,000 readings/ch When recording 4 channels: up to 240,000 readings/ch |
|
| Recording Mode | Endless (Overwrite oldest data) or One Time (Stop when full) | |
| Recording Start Method | Immediate Start or Programmed Start (by individual logger or by group) | |
| Group Recording | Up to 4 units (16 channels) simultaneously (MCR-4TC and MCR-4V coupling possible) (*3) | |
| Communication Interfaces | USB 2.0 (Mini-B connector) | |
| Communication Time | Download Times for Full Data via USB: – From master/single unit: Approx. 1 minute 30 seconds – From slave unit: Approx. 4 minutes 30 seconds |
|
| External Memory | SD / SDHC Memory Card (For Manual/Automatic Data Export) | |
| Power | AA Alkaline (LR6) x2, AA Ni-MH x2, AC Adapter (AD-05A2/AD-05C2), USB Bus Power 5V 250mA | |
| Battery Life | Approx 5 Days with 100ms interval and up to 60 days with 5 second logging | |
| Input Terminal | Screwless Terminals Compatible Wires: Single: Ø0.32 to Ø0.65mm (AWG 28-22) Twisted: 0.08 to 0.32 mm² (AWG 28-22), Ø0.12mm or more Stripping Length: 9 to 10mm |
|
| Isolation | CH1, CH2, CH3, CH4, and USB isolated. (Battery terminals not isolated from CH1-CH4 inputs.) CH1-CH4 Max Voltage: ±50V Electrical Isolation Resistance: 50 MΩ or more (DC ±250V) |
|
| Dimensions | H 120mm × W 75mm × D 32mm | |
| Weight | Approx. 140g | |
| Operating Environment | Temperature: 0 to 50°C Humidity: 90% RH or less (no condensation) |
|
| Software | PC Software (Windows): MCR for Windows, T&D Graph |
|
