Description
Connector Specifications
| Voltage Rating | 300 vDC/AC rms |
| Insulation Resistance | > 200 MΩ |
| Contacts Current Rating | 10 A per contact (max 20 A per connector) |
| Contact Resistance | < 0.01 Ω |
| Temperature Rating (Water) | -4 to 60°C, 25 to 140°F |
| Temperature Rating (Air) | -40 to 60°C, -40 to 140°F |
| Storage Temperature Rating | -40 to 60°C, -40 to 140°F |
| Qualified Pressure Tested | Mated: 1,400 Bar, 20,300PSI. Open: 800 Bar, 11,600psi (Open face) |
Material Specifications
| Connector Body | Chloroprene rubber |
| Bulkhead Body | Stainless Steel AISI 316 |
| Contacts | Gold plated brass UNS – C36000 |
| Location Pin | Stainless Steel AISI 303 |
| O-rings | Nitrile |
| Locking sleeves | ABS or Stainless Steel |
| Snap rings | Stainless Steel AISI 302 |
| Conductor Inline Cable (2 ft, 60 cm) | 18 AWG, 0.82 mm² synthetic rubber |
| Contact Bulkhead and PBOF Leads (1 ft, 30 cm) | 20 AWG, 0.52 mm² coloured PTFE |
| OM Leads (3″, 7 cm) | 20 AWG, 0.52 mm² coloured PTFE |

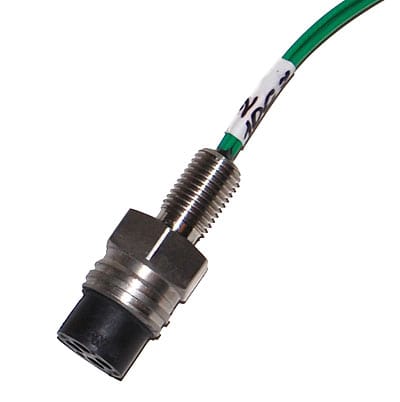

Micro-Series Connector Locking Sleeve – Female
