The MC 4.0 ManoAir is part of the MC 4.0 range but comes with a pressure sensor module that allows the unit to measure absolute or differential pressure. The MC 4.0 ManoAir includes an internal logger for up to 1 million readings, Bluetooth connectivity and pressure module for connecting 2 sensors. The pressure modules are used for precise flow and differential pressure measurement of gaseous media on filters and in pitot tubes in the ventilation duct. They are used in heating, ventilation and air conditioning as well as in clean rooms. Two pressure modules are available for the measuring ranges ±2000 Pa and ±20 kPa, which can be exchanged with a single movement.
The MC 4.0 ManoAir is the replacement for the ManoAir 100 Digital Manometer.
The MC 4.0 ManoAir is available with 2 different pressure ranges, ±2,000Pa and ±20kPa. Each range comes with an internal logger suitable for up to 1 million readings and bluetooth connectivity, plus options to include a touchscreen interface or a larger 4,000mAh battery
Future options will allow for vane anemometers, thermoair or humidity sensors, plus additional measuring channels.

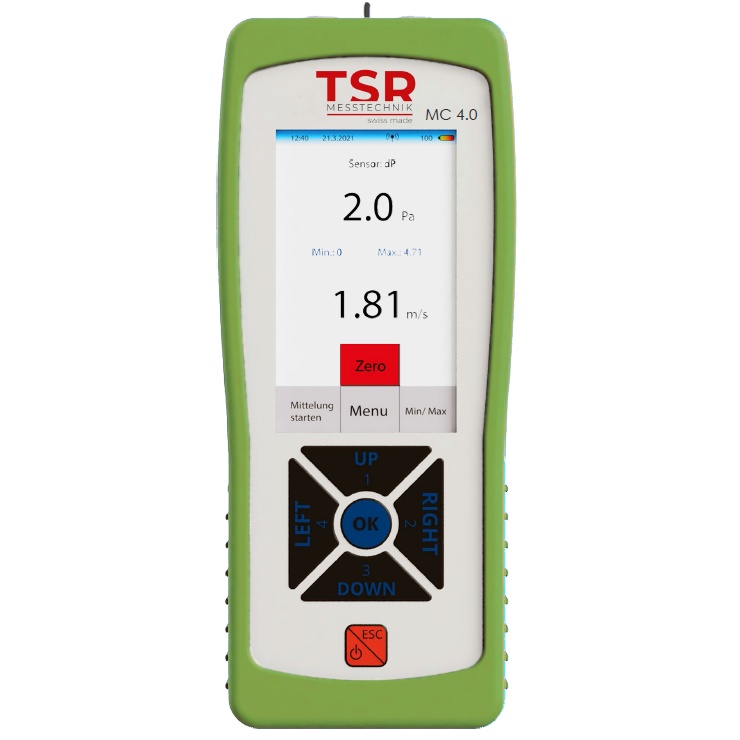

MC 4.0 ManoAir Display Unit
| Display: | 3.2″ TFT Display |
| Unit of Measure:
|
Flow: m/s, km/h, ft/s. mph Volume: Flow: m³h, l/min, m³/s, cfm Humidity: %RH Temperature: °C, F, °K Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm |
| Power Supply: | Lithium Polymer Battery |
| Battery Life: | Approx 15 Hours |
| Case Dimensions: | 168 x 68 x 38mm |
| IP Rating: | IP67 |
| Weight: | Approx 300g |
| Operating Temp: | 0 to 60°C |
| Humidity: | 0-99%RH |
| Protective Case: | Removable Green Rubber Case. Also available in Blue, Red or Orange. |
| Pressure Range | ±2,000Pa | ±20kPa |
| Resolutions | 1 Pa | 0.01kPa |
| Accuracy | <100Pa ±3Pa >100Pa ±10Pa |
<100Pa ±0.03kPa >100Pa ±0.01kPa |
| Pressure Connection | Push-on nipple Ø 3mm inside | |
400.0300
£905.77
400.0302
£943.90
400.0303
£1,053.55
400.0304
£1,011.60
400.0301
£905.77
