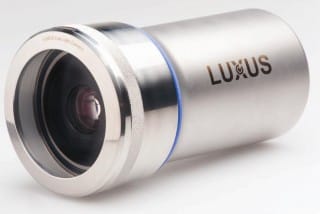

The LUXUS Low Light Camera is ideal for underwater conditions where light is limited, eg ROV applications. When deployed in harsh and turbid environments, the black and white sensor offers high light sensitivity, image quality and viewing performance. The camera is equipped with a zoom function and can be adjusted for focus, white balance, iris and a number of other settings. Focus and white balance also have auto settings. Camera functions can be controlled with the software supplied or hard wired. The camera uses a Composite Y output but can also be supplied with other output types. The camera is delivered with SubConn or alternative customer specified connectors. The camera housing is made from sandblasted Titanium and has a depth rating of 4000 metres. Power supply 9-36vDC.
Features
Specifications
| Material: | Titanium housing with Borosilicate glass |
| Depth Rating: | 4000m |
| Power Supply: | 9-36vDC (6.5W) |
| Focus: | Manual or Automatic |
| Iris: | Manual or Automatic |
| White Balance: | Manual or Automatic |
| Zoom (120x): | 10 x optical, 12 x digital |
| Output: | Video composite 1 Vpp |
| Sensitivity: | 0.0004 Lux, recommended illumination >0.015 Lux |
| Standard Connector: | SubConn FCR 1508M Ti or 75CXBH6M (Others on request) |
| Weight: | 2500g in Air, 1325g in Water |
| Operating Temp: | -10 to +50°C |

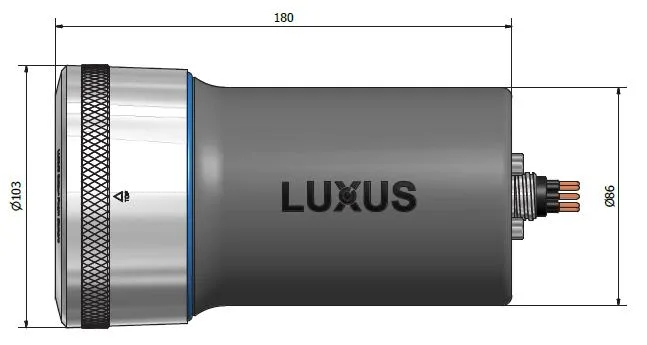

Drawing
25400044
£4,627.95
25000497
£274.69
