Downloads
Description
Features
- Compact, lightweight Titanium housing
- Suitable for diving, small ROV’s and winch and deck monitoring applications
- Options for lenses, connectors and custom wiring
- Rated to 4,000m depth
- Universal and helmet mounting brackets available
Specifications
| Material: | Titanium housing with Borosilicate glass |
| Depth Rating: | 4000m |
| Power Supply: | 12-24vDC (2W) |
| Angle of View (Horizontal): | 120° in Air, 90° in Water (Other angles available) |
| Min Focus Distance: | 10cm |
| Output: | Video composite 1 Vpp |
| Sensitivity: | 0.1 Lux |
| Standard Connector: | SubConn MCBH4M Ti (Others on request) |
| Weight: | 280g in Air, 190g in Water |
| Operating Temp: | -10 to +50°C |

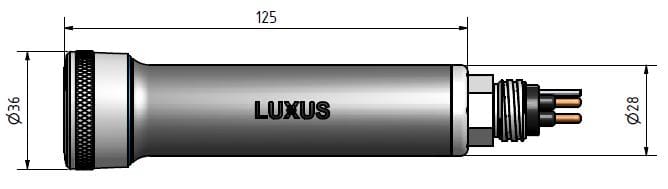

Drawing
