Downloads
Description
Features
- High performance and image quality
- Zoom function
- Numerous adjustable settings
- Suitable for ROV’s, tow and drop camera and under water observatory systems
- Options for connectors and custom wiring
- Rated to 4,000m depth
- Universal mounting brackets available
Specifications
| Material: | Titanium housing with Borosilicate glass |
| Depth Rating: | 4000m |
| Power Supply: | 9-36vDC (5W) |
| Focus: | Manual or Automatic |
| Iris: | Manual or Automatic |
| White Balance: | Manual or Automatic |
| Zoom (120x): | 10 x optical, 12 x digital |
| Output: | Video composite 1 Vpp |
| Sensitivity: | 0.1 Lux |
| Standard Connector: | SubConn FCR 1508M Ti or 75CXBH6M (Others on request) |
| Weight: | 2500g in Air, 1325g in Water |
| Operating Temp: | -10 to +50°C |

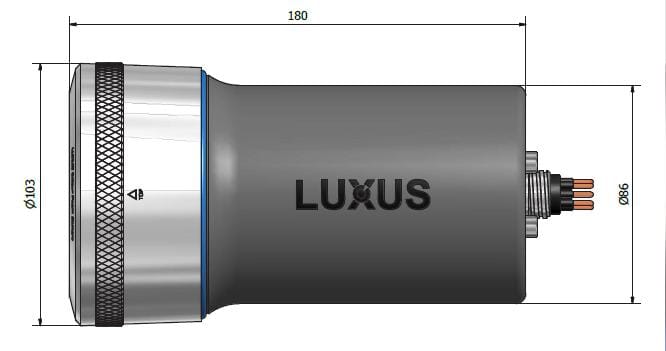

Drawing
