LPMS-UTTL3 IMU Sensor

Description

The LPMS-UTTL3 Motion Sensor is a miniature inertial measurement unit (IMU) and attitude and heading reference system (AHRS) with USB and TTL connectivity. The unit is very versatile, performing accurate, high speed orientation and displacement measurements. By the use of three different MEMS sensors (3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer) for drift-free, high-speed orientation data around all three axes is achieved. Integrated temperature and barometric pressure sensors allow accurate altitude measurements. The LPMS-UTTL3 can be connected to a host system either via a USB or TTL connection. High data transfer rates allow sampling rates of up to 400Hz. The LPMS-UTTL3 can be used for both machine and human motion measurements.

Features

    • MEMS Miniature inertial measurement unit (IMU)
    • Integration of 3-axis gyroscope, accelerometer, magnetometer, temperature and barometric pressure sensor in one unit
  • Real-time, on-device calculation of sensor orientation, linear acceleration and altitude
  • Data output rates of up to 500Hz
  • Variety of wired interfaces: UART TTL and USB 2.0



Applications

  • Human motion capture
  • Internet of Things (IoT) devices
  • Sport performance evaluation
  • Drone flight control



Specifications

Wired Interface TTL USB 2.0
Max Baud Rate 921.6KBit/s 921.6KBit/s
Communication protocol LpBUS  / ASCII LpBUS / ASCII
Orientation range Roll: ±180°; Pitch: ±90°; Yaw: ±180°
Resolution < 0.01°
Accuracy < 2° RMS (dynamic) < 0.5° (static)
Accelerometer 3 axes, ±2 / ±4 / ±8 / ±16 g, 16 bits
Gyroscope 3 axes, ±125, ±250, ±500, ±1000, ±2000 or ±4000 °/s, 16 bits
Magnetometer 3 axes, ±2, ±8 gauss, 16 bits
Pressure sensor 300 – 1100 hPa
Data output format Raw data / Euler angle / Quaternion
Sampling rate 500Hz
Power consumption 17mA @ 12V
Power supply 5–18vDC 5vDC
Connector DB9 Female Micro USB-B
Case Material ABS Plastic Shell

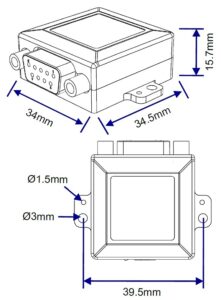

Dimensions 34 x 34.5 x 15.7mm
Weight 17.6g
Temperature range -20 to +80°C (Upon Request -40 to +80°C)
Software LpmsControl2 interface software (Windows), Open source sensor driver for Windows and Linux (OpenZen, supports C, C++, Python, C#, Unity, ROS)
