Description

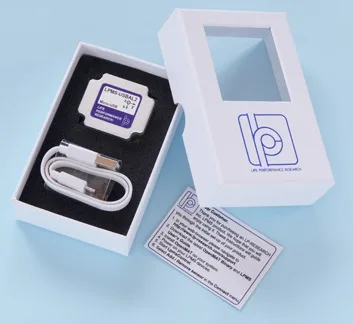

The LPMS-USBAL3 is a high performance motion sensor in a rugged Aluminium housing with a micro USB-B port. The unit is very versatile, performing accurate, high speed orientation and displacement measurements. By the use of three different MEMS sensors (3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer) for drift-free, high-speed orientation data around all three axes is achieved. Integrated temperature and barometric pressure sensors allow accurate altitude measurements. The LPMS-USBAL3 can be connected to a host system either via a micro USB, type B, connection. High data transfer rates allow sampling rates of up to 400Hz are possible. The widely used USB interface provides data communication allowing the LPMS-USBAL3 to suit both machine and human motion measurements allowing sensors to be connected directly to a PC, laptop or central control unit.

FeaturesLPMS-USBAL2 Dimensional Drawing

  • MEMS Miniature inertial measurement unit (IMU)
  • Integration of 3-axis gyroscope, accelerometer, magnetometer, temperature and barometric pressure sensor in one unit
  • Real-time, on-device calculation of sensor orientation, linear acceleration and altitude
  • Data output rates of up to 400Hz
  • Variety of wired interfaces: USB 2.0
  • Control application and SDK for Windows, Linux
  • Rugged Aluminium housing option with a micro USB port



Applications

  • Human motion capture
  • Internet of Things (IoT) devices
  • Sport performance evaluation
  • Robotic control or monitoring
  • Drone flight control



Specifications

Wired Interface USB 2.0
Max Baud Rate 921.6KBit/s
Communication protocol LpBUS
Orientation range 360° about all axes
Resolution < 0.01°
Accuracy < 2° RMS (dynamic) < 0.5° (static)
Accelerometer 3 axes, ±2 / ±4 / ±8 / ±16 g, 16 bits
Gyroscope 3 axes, ±125, ±245, ±500, ±1000 or ±2000 °/s, 16 bits
Magnetometer 3 axes, ±4, ±8, ±12 or ±16 gauss, 16 bits
Pressure sensor 300 – 1100 hPa
Data output format Raw data / Euler angle / Quaternion
Sampling rate Up to 400Hz
Power consumption <182 mW @ 3.3V
Power supply 5vDC
Dimensions 40 x 34 x 17mm
Connector Micro USB, type B
Case Material Aluminium
Weight 36g
Temperature range -40 to +80°C
Software C++ library for Windows, LpmsControl software and
Open Motion Analysis Toolkit (OpenMAT) for Windows.
