Description

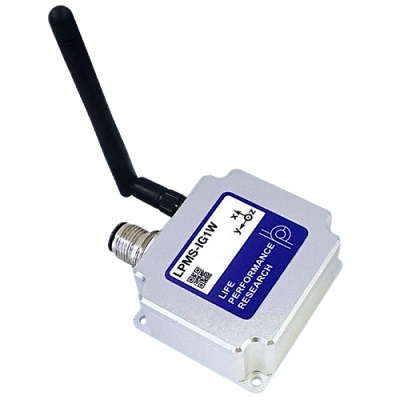

The LPMS-IG1W is a a miniature inertial measurement unit (IMU) and attitude and heading reference system (AHRS) with Wi-Fi Wireless communications. The unit performs accurate, high speed orientation and displacement measurements with three different MEMS sensors. The LPMS-IG1W is equipment with a powerful central processing unit that will fuse raw data from the dual gyroscopes, accelerometer and magnetometer to calculate results in real-time with low drift and high accuracy. The LPMS-IG1W features an integrated Wi-Fi antenna connection for wireless connection to a local WiFi Network. All sensor parameters and data transmission options can be controlled by PCs and smartphones via Wi-Fi connection.

Features

• MEMS-Based 9-axis inertial measurement unit (IMU) with onboard sensor fusion.
• Dual gyroscope modes allow two ranges, 400°/s and up to 2,000°/s
• Real-time, on device calculation of sensor orientation and linear acceleration
• Shock-resistant up to 10,000g
• USB Interface for easier configuration
• IP67 rugged Aluminium housing
• Versatile software and library support for data acquisition and sensor configuration.

Applications

• Robotic Manipulator Forward Kinematics Control
• IoT Applications Such As Abnormal Vibration Detection
• Object Orientation Tracking for VR/AR
• Automatic Guided Vehicle (AGV) Navigation
• Prototype Integration

Specifications

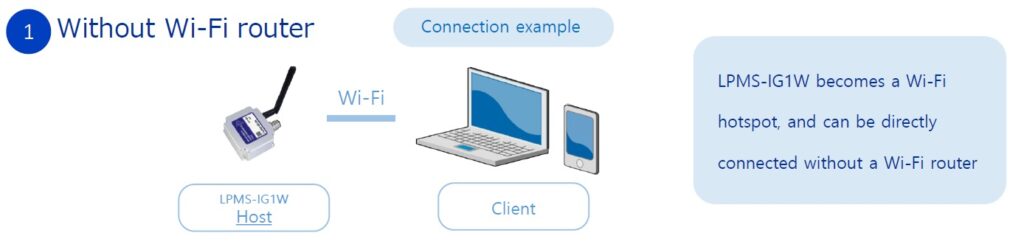

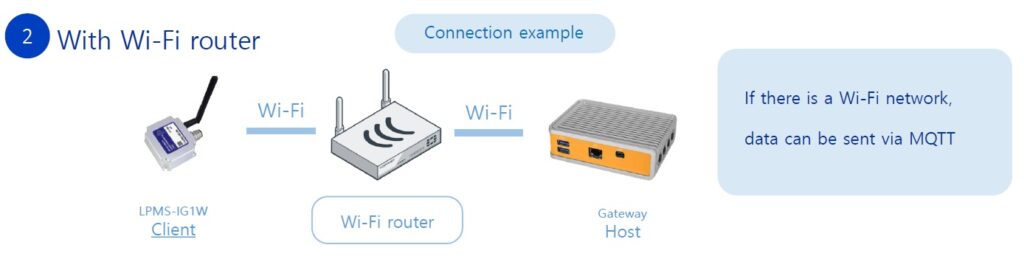

 Types Of Connection Method
