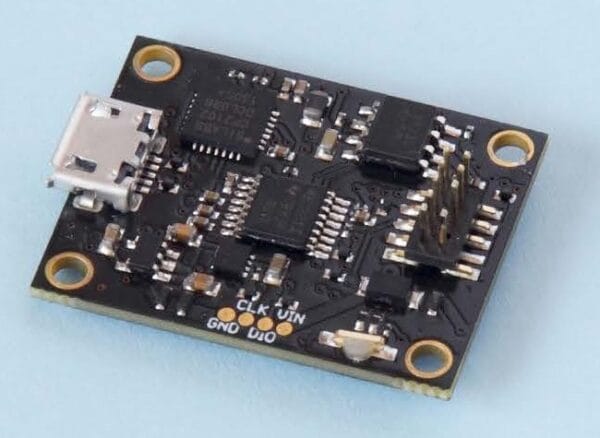

LPMS-CURS3-TTL OEM: 9-Axis IMU/AHRS/Motion Sensor. Accelerometer: 3 axes, ±2/±4/±8/±16 g (16 bits); Gyroscope: 3 axes, ±125/±245/±500/±1000/±2000°/s (16 bits); Magnetometer: 3 axes, ±4/±8/±12/±16 gauss (16 bits); Barometric Pressure: 300 to 1100hPa. Data output format: Raw Data; Euler Angle; Quaternion @ up to 400Hz. Power supply 5 to 15vDC (TTL), 5vDC (USB). Dimensions: 22 x 28 x 7.9mm, weight: 3.1g. Sensor come with Header pitch 1.27mm solder pins for TTL comms and micro USB-B port. Units supplied with 1 x Cable (1.27mm pitch connector), User guide card and 1 year warranty. Software: C++ library for windows, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for windows.
£203.72
LPMS-CURS3-TTL is a high performance miniature inertial measurement unit (IMU) with USB and TTL communication interfaces. LPMS-CURS3-TTL allows the measurement data transmitted via LPBus and can be freely configured using the LPMS-Control software. Depending on transfer rate settings of the sensor, data rates of up to 400Hz can be achieved.
| Wired Interface | RS232/TTL | USB |
| Communications Protocol | LP-BUS | LP-BUS |
| Max Baud Rate | 921Kbit/s | |
| Orientation Range |
Roll: ±180°; Pitch ±90°; Yaw: ±180° | |
| Accelerometer | 3-Axis, ±2/±4/±8/±16g, 16 Bits | |
| Gryoscope |
3 Axis, ±125/±245/±500/±1000/±2000 dsp, 16 Bits | |
| Magnetometer | 3-Axis, ±4/±8/±12/±16 gauss, 16 Bits | |
| Data Output Format | Raw Data / Euler Angle / Quaternion | |
| Data Output Rate | Up to 400Hz | |
| Pressure Sensor |
Available on request, Range 300-1100hPa | |
| Power Supply |
5-15vDC, 3.3V On request | 5vDC |
| Power Consumption |
<182mW @ 3.3V | |
| Connector | Header Pitch 1.27mm | Micro USB-B |
| Dimensions | 22 x 28 x 7.9mm | |
| Weight | 3.1g | |
| Operating Temperature Range | -40 to +80°C | |
Price breaks are available on the LPMS-CURS3-TTL on order quantities of 50+, 200+ and 1000+. Contact Omni Instruments Ltd directly to discuss your requirements.
