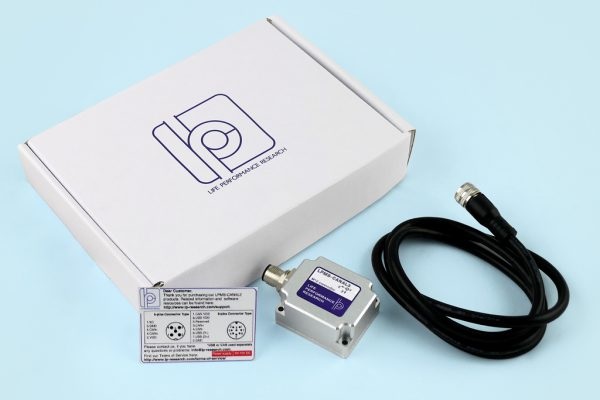

LPMS-CANAL3: 9-Axis IMU/AHRS/Motion Sensor with CANBus output in an IP67 waterproof Aluminium housing. Accelerometer: 3 axes, ±20/±40/±80/±160m/s² (16 bits); Gyroscope: 3 axes, ±125/±245/±500/±1000/±2000°/s (16 bits); Magnetometer: 3 axes, ±4/±8/±12/±16 gauss (16 bits); Barometric Pressure: 300 to 1100hPa. Data output format: Raw Data; Euler Angle; Quaternion @ up to 400Hz. Power supply 5 to 18vDC. Dimensions: 48 x 40 x 23mm, weight: 67.5g. The LPMS-CANAL2 includes a SACC-DSI-MS-5CON-PG 9/0.5 SCO, M12 connector for CANBus output. Units supplied with a suitable waterproof cable, User guide card and 1 year warranty. Software: C++ library for windows, Java library for Android, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for windows.
£423.62
The LPMS-CANAL3 Motion Sensor is a miniature inertial measurement unit (IMU) and attitude and heading reference system (AHRS) with CANBus connectivity. The unit is very versatile, performing accurate, high speed orientation and displacement measurements. By the use of three different MEMS sensors (3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer) for drift-free, high-speed orientation data around all three axes is achieved. Integrated temperature and barometric pressure sensors allow accurate altitude measurements. The LPMS-CANAL3 can be connected to a host system via a 5-pin M12 connection. High data transfer rates allow sampling rates of up to 400Hz. The LPMS-CANAL3 can be used for both machine and human motion measurements.
| Wired Interface | CANBus | ||
| Max Baud Rate | 1Mbit/s | ||
| Communication protocol | LpCAN or CANOpen | ||
| Orientation range | 360° about all axes | ||
| Resolution | < 0.01° | ||
| Accuracy | < 2° RMS (dynamic) < 0.5° (static) | ||
| Accelerometer | 3 axes, ±2 / ±4 / ±8 / ±16 g, 16 bits | ||
| Gyroscope | 3 axes, ±125, ±245, ±500, ±1000 or ±2000 °/s, 16 bits | ||
| Magnetometer | 3 axes, ±4, ±8, ±12 or ±16 gauss, 16 bits | ||
| Pressure sensor | 300 – 1100 hPa | ||
| Data output format | Raw data / Euler angle / Quaternion | ||
| Sampling rate | Up to 400Hz | ||
| Power consumption | 155 mW @ 3.3V | ||
| Power supply | 5–15vDC | ||
| Connector | SACC-DSI-MS-5CON-PG 9/0.5 SCO, M12 | ||
| Case Material | Aluminium | ||
| Dimensions | 48 x 40 x 25mm | ||
| Weight | 67.5g | ||
| Temperature range | -40 to +80°C | ||
| Software | C++ library for Windows, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for Windows. |
||
