LPMS-B2 OEM: 9-Axis IMU/AHRS/Motion Sensor with Bluetooth. Accelerometer: 3 axes, ±2/±4/±8/±16g (16 bits); Gyroscope: 3 axes, ±125/±245/±500/±1000/±2000°/s (16 bits); Magnetometer: 3 axes, ±4/±8/±12/±16 gauss (16 bits). Data output format: Raw Data; Euler Angle; Quaternion @ up to 400Hz. Power supply 3.3-5.5vDC @ 110mW. Bluetooth Classic 2.1 or Low Energy 4.1 connection, max 20m. Dimensions: 16 x 31 x 4m, weight: 2g. Sensor come with User guide card and 1 year warranty & support. Software: C++ library for windows, Java library for Android, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for windows. Units supplied as OEM board with SM02B-SURS-TF connector, discounts available for volume orders above 50 units.
£210.00
The LPMS-B2 OEM is a high performance miniature motion sensor with Bluetooth connectivity. Bluetooth 2.1 and Low Energy 4.1 options are available, which makes the LPMS-B2 OEM board perfect for both machine and human wireless motion measurements. This OEM version provides a bare bone version of the sensor without a casing for easier integration into your own equipment. A full development kit for the testing of the sensor is advised for first-time customers to ensure the units will function as expected and to allow any issues to be highlighted and potentially resolved before purchasing a larger volume. However, if you are already using the units and intend to integrate the sensor into your own equipment, the OEM board requires much less space.
| Bluetooth |
Bluetooth Classic 2.1 or Bluetooth Low Energy (LE) 4.1 | ||
| Communication Distance |
Up to 20m | ||
| Orientation range | 360° about all axes | ||
| Resolution | < 0.01° | ||
| Accuracy | < 2° RMS (dynamic) < 0.5° (static) | ||
| Accelerometer | 3 axes, ±2 / ±4 / ±8 / ±16 g, 16 bits | ||
| Gyroscope | 3 axes, ±125, ±245, ±500, ±1000 or ±2000 °/s, 16 bits | ||
| Magnetometer | 3 axes, ±4, ±8, ±12 or ±16 gauss, 16 bits | ||
| Pressure sensor | 300 – 1100 hPa | ||
| Data output format | Raw data / Euler angle / Quaternion | ||
| Sampling rate | Up to 400Hz | ||
| Power consumption | 110 mW @ 3.3V, (min current 33mA) | ||
| Power supply | 3.3-5.5vDC | ||

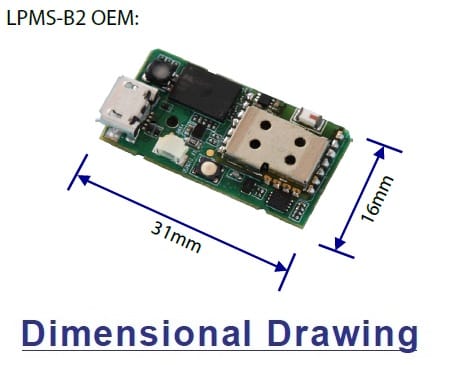

| Dimensions | 16 x 31 x 4mm | ||
| Weight | 2g | ||
| Temperature range | -40 to +80°C | ||
| Software | C++ library for Windows, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for Windows. | ||
Price breaks are available on the LPMS-B2 OEM for quantities of 50+. Contact Omni Instruments Ltd directly to discuss your requirements.
