Description

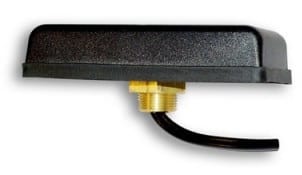

A lwo profile antenna is a popular solution for applications where a standard antenna may be damaged, or where a less obtrusive antenna is desirable. The antenna consists of a toughened plastic enclosure covering a quad band GSM/GPRS, 3G and WiFi tuned 1/4 wave dipole antenna with an integral groundplane and secured with a through hole threaded nut. The plastic of the housing allows a relatively unattenuated electromagnetic signal between the antenna inside and the outside environment.
The LOWPROGSMB is a WiFi, Bluetooth antenna with a frequency range of 2.4 to 2.5GHz. The antenna is designed to be mounted to enclosures such as utility street furniture, access control panels or commercial vehicles. The rubber seal prevents moisture ingress and is tough enough to withstand industrial washers use to clean trucks or buses. The WIFIBM antenna is ideal for WiFi and Bluetooth devices, making this antenna suitable for use in applications requiring a discrete radio antenna. This antenna can be used with various WiFi and Bluetooth radio devices that use the 2.4 to 2.5GHz frequency bands.
Specifications
| Frequency: | GSM |
| Polarity: | Vertical or horizontal |
| Gain: | 2 dbi |
| VSWR: | 1.5 to 1 |
| Dimensions: | 17mm height, 42mm width, 96mm length |
| Cable: | 3m (others on request) |
| Connector: | SMA or as per requirements |
| Power: | 20 Watts max |
| Impedance: | 50 Ohms |
Cable is 3m long and comes fitted with an SMA connector but any standard radio antenna connectors can be fitted with longer cables on request.
