Description

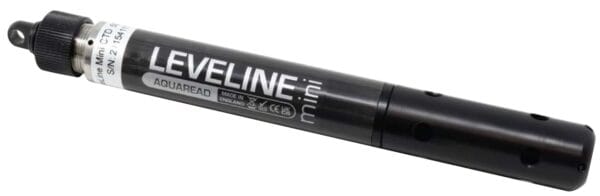

The LL-MINI-CTD-ABS-010 is a 10m water level sensor with conductivity, temperature and salinity measurements. The sensor incorporates an Absolute piezoresistive sensor to monitor depth. This sensor doesn’t require a vent tube to the surface, but will require readings are compensated for barometric pressure readings taken at the surface. The sensor includes the same 4 ring stainless steel to measure conductivity and salinity measurements with an integral temperature sensor to provide temperature compensated values. This ensuring accurate readings across the full operational temperature range of -20 to +80°C. Users can select from a range of cable lengths and AquaConn connectors.

The sensor housing is constructed from a carbon fibre and titanium composite. This material selection provides a high strength-to-weight ratio and enhanced corrosion resistance, critical for reliable long-term deployment in challenging environmental conditions, including saline solutions.

Features

• 0.05% FS accuracy.
• Carbon fibre and titanium body.
• 2 year warranty.
• SDI-12, RS485/MODBUS direct out communications.
• Can be connected to the AquaTel for complete remote monitoring system.
• Can be connected with the BlueLink adaptor for short-term monitoring.
• Vented option available

Applications

• Groundwater level monitoring, pump tests, slug tests etc.
• Stream, lake and reservoir water level measurement.
• Wetland and flood water monitoring.
• Coastal monitoring.
• Tank level measurement.
• Long term continuous monitoring in boreholes, surface water and seawater applications.
• Process applications.
• Flood warning systems.
