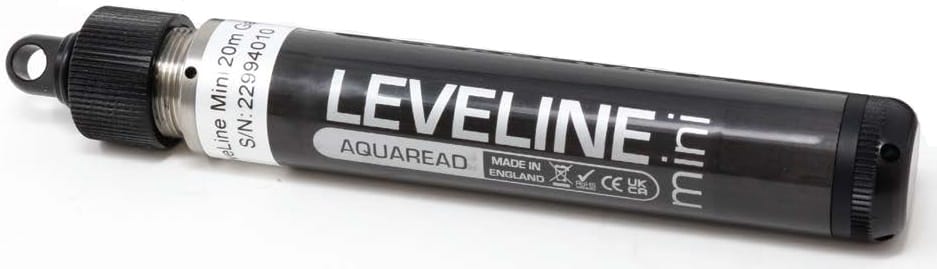

The LeveLine-Mini is a precise water level and temperature sensor designed for diverse groundwater and surface water applications. Encased in a sealed unit, it integrates both temperature and level sensing capabilities. The LeveLine-Mini Absolute employs a durable piezoresistive ceramic pressure sensor, ensuring long-term stability and delivering an accuracy of 0.05%FS across various available level ranges, all of which are temperature compensated from -20 to 80°C. Offered with multiple cable configurations and absolute or gauge options, this sensor requires connection to an external data logger or AquaTel telemetry device for power and data logging, making it a cost-effective solution for water level and temperature monitoring.
The LeveLine-Mini Absolute employs a piezoresistive ceramic pressure transducer for precise level measurement, exhibiting a specified accuracy of ±0.05%FS and long-term stability. The sensor incorporates integral temperature compensation circuitry, ensuring accurate readings across an operational temperature range of -20 to +80°C. Users can select from various full-scale pressure ranges and specify either an absolute or gauge pressure reference, along with a range of cable termination options.
The sensor housing across the LeveLine-Mini series is constructed from a carbon fibre and titanium composite. This material selection provides a high strength-to-weight ratio and enhanced corrosion resistance, critical for reliable long-term deployment in challenging environmental conditions, including saline solutions.
| GENERAL | |
|---|---|
| Temperature ranges | Operational: -20-80°C, Storage: -40-80°C, Compensated: -20-80°C |
| Diameter | 22mm |
| Length | 87mm |
| Weight | 120g |
| Materials | Titanium body, Delrin nose cone |
| Output options | Modbus/RS485, SDI-12, Aquaread proprietary |
| Battery type & life | 3.6V lithium; up to 10 years |
| External power | 6-24vDC |
| OUTPUT RATE | |
| Fastest Modbus output rate | 10 per second |
| Fastest SDI-12 output rate | 1 per second |
| SENSOR | |
| Type / Material | Piezoresistive ceramic |
| Range (Gauge & Absolute) | 10.0M (32.8 ft), 20.0M (65.6 ft), 50.0M (164 ft), 100M (328 ft) |
| Maximum pressure | Max 2x range, Burst 2.5x range |
| Accuracy (%FS) | ±0.05%FS |
| Resolution | 0.002%FS or 1mm whichever is greater |
| Units of measure | Pressure: mbar (psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O), Level: m, ft, mm, cm and mm available in Levelink |
| TEMPERATURE SENSOR | |
| Accuracy & resolution | ±0.1 °C, 0.01 °C |
| Units of measure | Celsius (Fahrenheit available in Levelink) |
| WARRANTY | |
| Standard | 2 years on all LeveLine-Mini versions |
| Extended | Options Available |

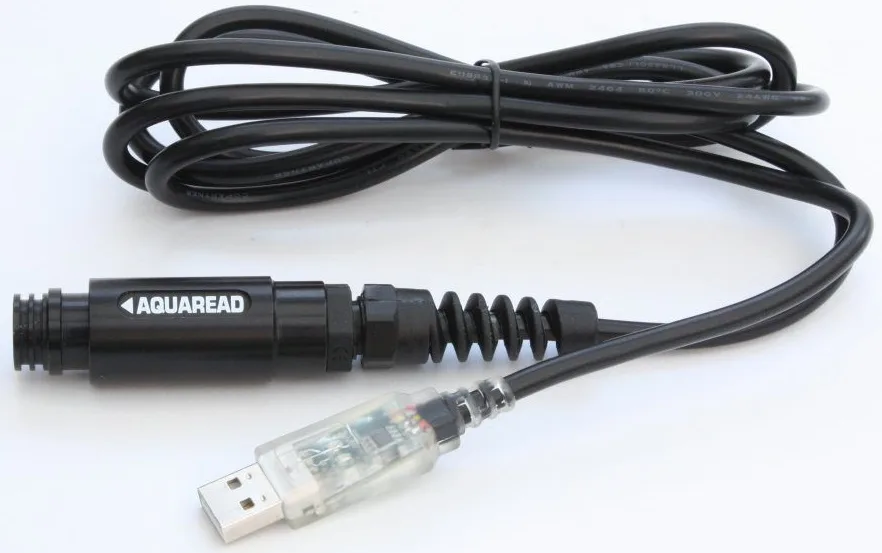

LL-PC-KIT
£170.00
