Description

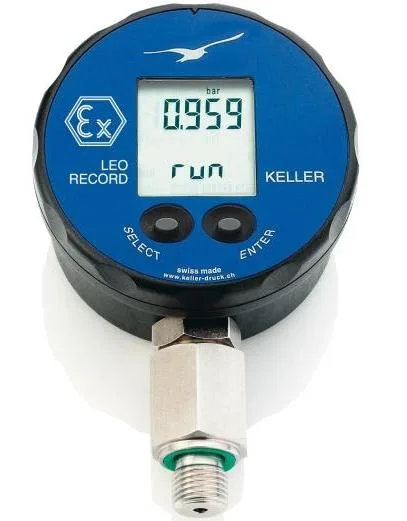

LEO RECORD is an autonomous battery powered instrument with digital display designed to record pressure and temperature over long periods.
LEO RECORD offers the following advantages:
- High measuring accuracy, resolution and robustness
- High data security due to the use of a non-volatile memory
- Display of the actual pressure and the record status
- Recording of the pressure and temperature
- Battery Life 24 months with 10 second logging.
- Simple and well structured configuration- and read-out software (Logger 4.x) for PC or PDA
- Combination of event-controlled recording and interval recording prevents unnecessary data being recorded (i.e. only measuring the pressure changes…)
- Installation data (and comments) of the measuring station can be stored in the instrument
- Pressure connection with G1/4” thread (other threads on demand)

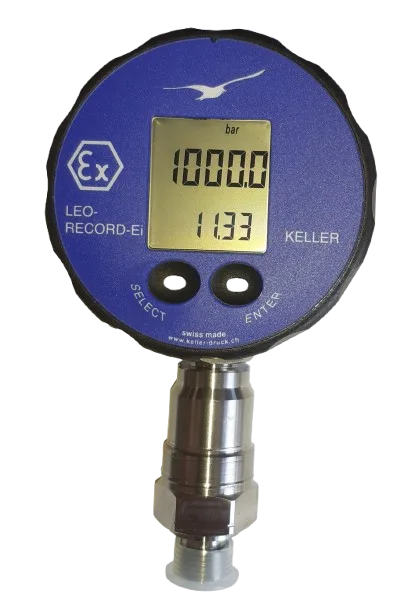

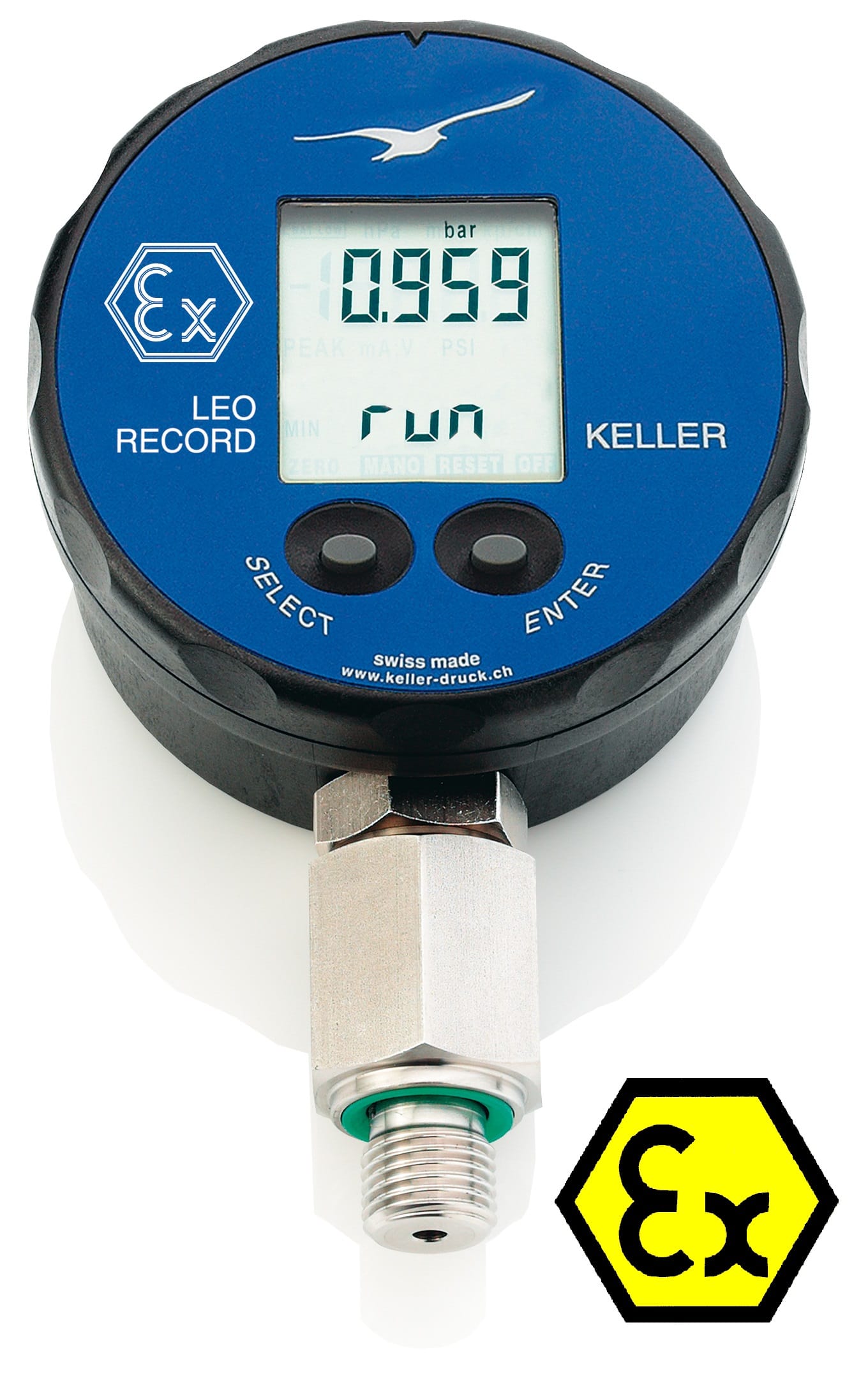

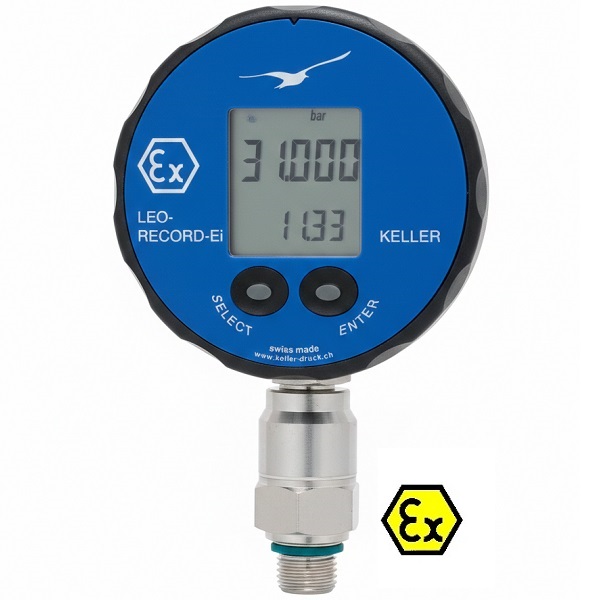

LEO RECORD Ei Intrinsically Safe Version
Classification: EX II 2 G EEx ia II C T4
Certification File: PTB 05 ATEX 2012 X
Specifications
| Pressure Ranges* | -1 to 3 Bar -1 to 30 Bar 0 to 300 Bar 0 to 700 Bar 0 to 1,000 Bar 0 to 1,500 Bar 0 to 2,000 Bar |
| Accuracy | 0.1%FS |
| Storage Temperature | -10 to +60°C |
| Compensated Temperature Range | 0 to 50°C |
| Protection | IP65 |
*Click the pressure range for application and specific information.
PressureSuite Software

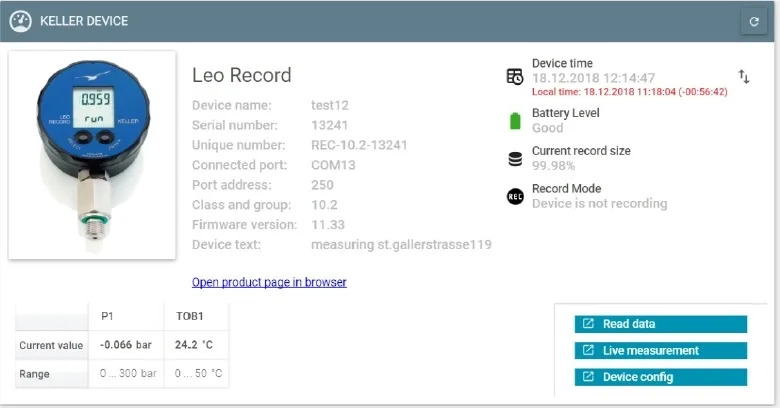

‘PressureSuite Desktop’ Windows software for reading and configuring the LEO Record data loggers. With ‘live data’, a connected device can record directly to the PC. Selected measurement data can be graphically displayed and exported.
Features
- Auto-connection of supported KELLER devices
- Read Recorded data from connected device
- Measure live from a connected device, supports Series 30 devices
- Read/Write configuration from/to a connected device
- Visualise the chosen record(s) in a chart
- Generate a Word document with the selected measurement data chart
- Export the chosen measurement data to an Excel or CSV file
