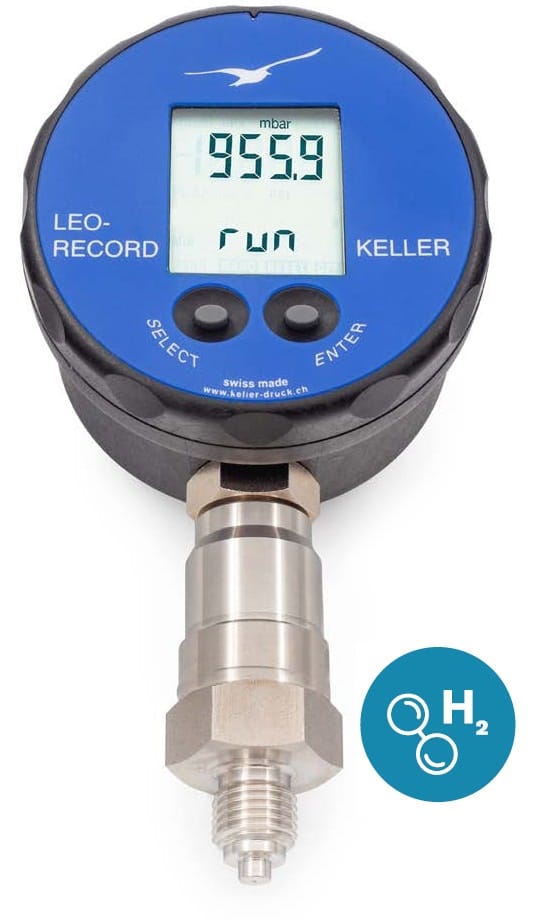

LEO-Record-H2 is a digital gauge with logging function for Hydrogen Applications. The digital manometer includes a higher Nickel content in the Stainless Steel components to lower embrittlement and a Gold plated diaphragm to minimise H2 diffusion. Recording function is the same as the standard LEO Record gauges with the same K114A download cable and Pressure Suite software. Separate LEO-Record-Ei-H2 is available for installations in Hazardous Areas.

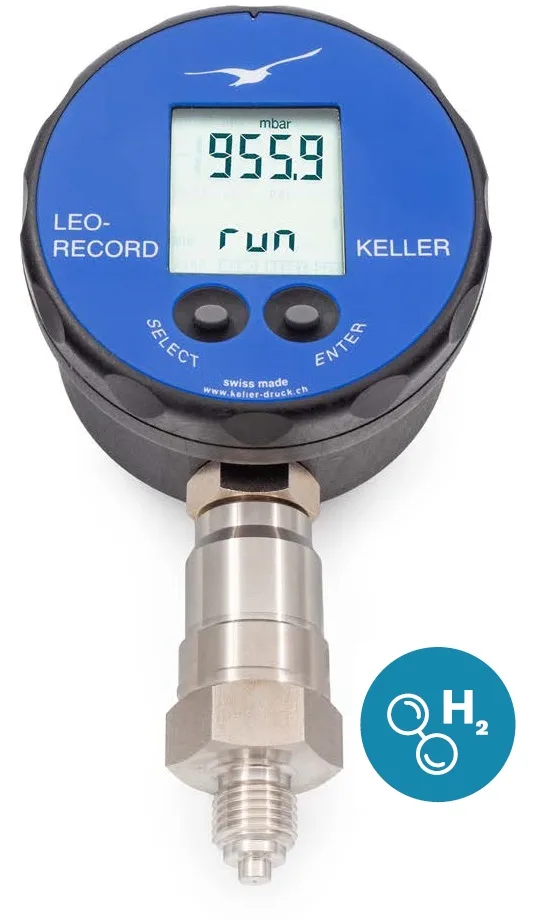

The LEO-Record-H2 is a precise digital pressure gauge suitable for Hydrogen systems. Providing long-term pressure and temperature recording with integrated display and storage. Its durable design, featuring high Nickel stainless steel and a Gold-plated membrane, minimises embrittlement and Hydrogen diffusion, ensuring extended service life. Ideal for manufacturing, Transportation, Storage or Forecourt applications.
| Relative pressure PR | Absolute pressure PAA | Absolute pressure PA | Proof pressure | Display resolution |
|---|---|---|---|---|
| -1 to 3 Bar | 0 to 4 BarA | 10 Bar | 0.001 Bar | |
| -1 to 10 Bar | 0 to 11 BarA | 30 Bar | 0.001 Bar | |
| -1 to 30 Bar | 0 to 31 BarA | 90 Bar | 0.01 Bar | |
| 0 to 61 BarA | 180 Bar | 0.01 Bar | ||
| 0 to 101 BarA | 300 Bar | 0.01 Bar | ||
| 0 to 300 Bar | 600 Bar | 0.1 Bar | ||
| 0 to 700 Bar | 1200 Bar | 0.1 Bar | ||
| 0 to 1000 Bar | 1200 Bar | 0.1 Bar | ||
| Reference pressure at atmospheric pressure |
Reference pressure at 0 BarA (vacuum) |
Reference pressure at 1 BarA. |
Relating to reference pressure |

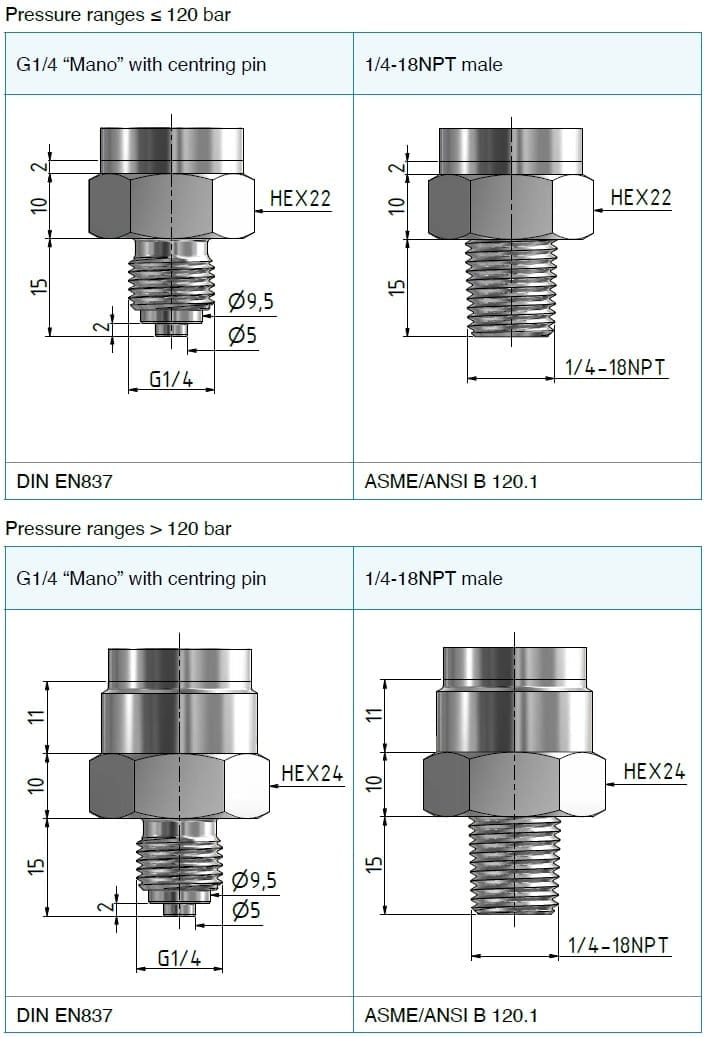

| Process Thread | ¼” BSP with centring pin |
| ¼-18 NPT Male | |
| Pressure Connection | Stainless steel AISI 316L/1.4435 |
| Pressure Transducer Diaphragm | Stainless steel AISI 316L/1.4435 Gold Plating 6µm |
| Pressure Connection Seal (External) | None, Metallically Sealed |
| Display Housing | Faradex AS-1003 |
| Front Glass | LEXAN® 163R |
| Pressure Transducer Oil Filling | Silicone oil |
