Description

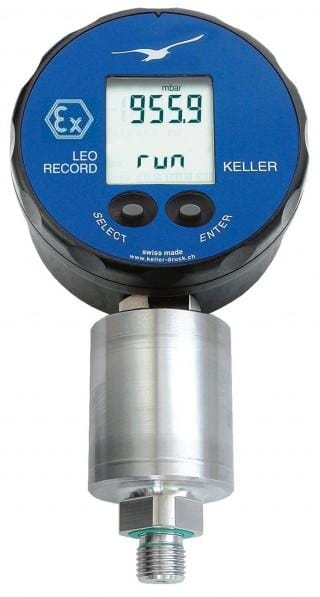

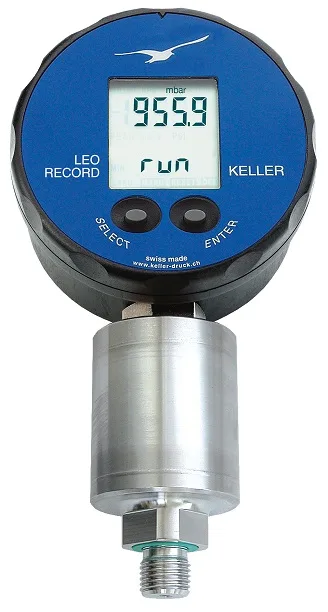

LEO RECORD CAPO is an autonomous battery powered instrument with digital display designed to record low pressure and temperature over long periods.

LEO RECORD CAPO offers the following advantages:

High measuring accuracy, resolution and robustness
Available with relative or differential pressure references
High data security due to the use of a non-volatile memory
Display of the actual pressure and the record status
Recording of the pressure and temperature
Battery Life 24 months with 10 second logging.
Simple and well structured configuration- and read-out software (Logger 4.x) for PC or PDA
Combination of event-controlled recording and interval recording prevents unnecessary data being recorded (i.e. only measuring the pressure changes…)
Installation data (and comments) of the measuring station can be stored in the instrument
Pressure connection with 1/4” BSP and 1/4″ NPT threads available as standard (other threads on demand)

LEO RECORD Ei Intrinsically Safe Version

Classification: EX II 2 G EEx ia II C T4
Certification File: PTB 05 ATEX 2012 X

Specifications

Pressure Ranges	30mBar 100mBar 300mBar
Accuracy	0.2%FS
Storage Temperature	-10 to +60°C
Compensated Temperature Range	0 to 50°C
Protection	IP65

The differential version of the LEO Record CAPO includes an additional pressure fitting underneath the sensor to connect to the negative pressure side via a 6mm diameter tube.
