Description

Product Applications – LEO-REC-IS-700BAR-1/2NPT

As with the 300 Bar gauge, the 700 Bar LEO Record is suitable for a broad range of demanding industrial and technological needs. This gauge can also display pressures in psi and the range covers 10,000 psi, a popular range for pressure monitoring. The ¼” BSP thread is an industry standard for small gauges but the ½”NPT thread offers some specific Mechanical advantages. Firstly, the NPT thread provides a more rigid interface and is sealed by the thread, instead of a perishable o’ring at the top of the thread. It is also metal on metal and the threads wedge together. Finally, it can also provide a higher blow-out resitance due to its much larger surface area. Critical where pressure spikes can occur.

Features

• High measuring accuracy, resolution and robustness
• High data security due to the use of a non-volatile memory
• Display of the actual pressure and the record status
• Recording of the pressure and temperature
• Battery Life 24 months with 10 second logging.
• PressureSuite Software offers Simple and well structured configuration and data reporting
• Combination of event-controlled recording and interval recording prevents unnecessary data being recorded (i.e. only measuring the pressure changes…)
• Installation data (and comments) of the measuring station can be stored in the instrument
• Pressure connection with ½” NPT thread, ideal for heavy industry.

LEO RECORD Ei Intrinsically Safe Version

Specifications for LEO-REC-IS-700BAR-1/2″NPT

Dimensional Drawing

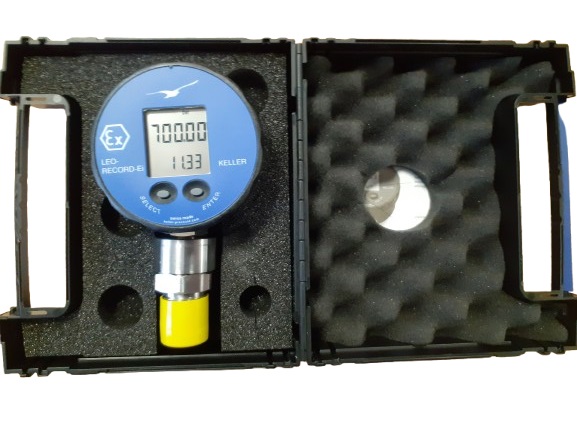

LEO-REC-IS-700BAR-1/2″NPT comes with
