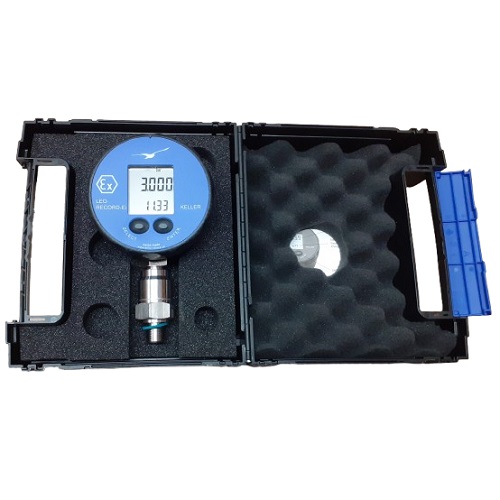

LEO Record Digital Manometer with digital display and data logger for pressure and temperature. Range -1 to 3 Bar with 1mBar resolution and 0.1%FS accuracy. Internal memory for up to 57,000 readings and internal battery for up to 2 years operation. Pressure connection: Stainless Steel ¼” BSP male connection with Viton O ring. Rear mating socket for configuration and downloading logged data via K114A. Certified ATEX approved for intrinsic safety.
£695.00
A lot of biogas processes can include digesters where anaerobic digestion by micro ogranisms breakdown organic matter producing gases, which can build up. Using a LEO-REC-IS-3Bar, the current pressure can be read on the display, plus you collect data for pressure and temperature to allow you to try an improve the process by ensuring the pressure and temperature don’t vary outside the ideal ranges.
Monitoring pressure in fume hoods, glove boxes, and reactor vessels to ensure safe handling of chemicals. This Intrinsically Safe LEO Record can be used to display and log pressures and temperatures to help understand how variations in the pressure and temperature have impacted experiments being carried out. Being Ex rated it is especially useful in experiments with flammable gases or dust.
| Process Thread | ¼” BSP Thread |
| Pressure Connection | Stainless steel AISI 316L |
| Pressure Transducer Diaphragm | Stainless steel AISI 316L |
| Pressure Connection Seal (External) | FKM (75 Shore, -20…200 °C) |
| Display Housing | Faradex AS-1003 |
| Front Glass | LEXAN® 163R |
| Pressure Transducer Oil Filling | Silicone oil |
| Pressure Ranges | -1 to 3 Bar |
| Accuracy | 0.1%FS |
| Storage Temperature | -10 to +60°C |
| Compensated Temperature Range | 0 to 50°C |
| Protection | IP65 |
K114A
£165.00

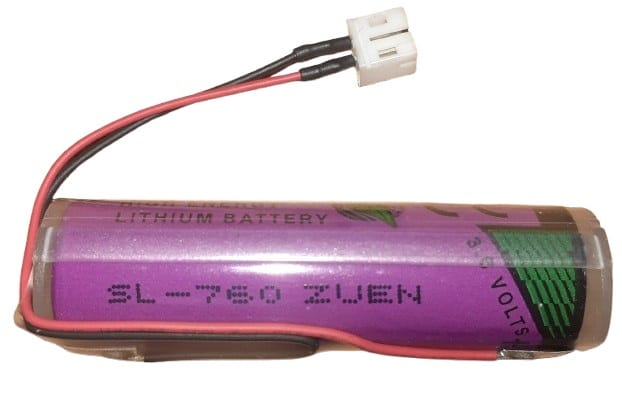

LEO-REC-IS-BATT
£30.00
BN4-4FMA10K-SS
£57.42
NPL-CAL-5 POINTS
£37.50
