LEO Record Digital Manometer with digital display and data logger for pressure and temperature. Range -1 to 30 Bar with 10mBar resolution and 0.1%FS accuracy. Internal memory for up to 57,000 readings and internal battery for up to 2 years operation. Pressure connection: Stainless Steel ¼” BSP male connection with Viton O ring. Rear mating socket for configuration and downloading logged data via K114A. Certified ATEX approved for intrinsic safety.
£695.00
The reliability of a water supply can vary significantly throughout the day, especially in areas where the terrain changes or on higher floors. The 30 Bar LEO Record can be used to monitor water pressure fluctuations and covers the standard 2-4 Bar range of normal domestic supplies. The LEO Record can profile how water pressure varies over time, helping to understand the impact on your supply and provide information for tenants, or landlords, to act on. It can also monitor temperatures and how variations during the day can affect the quality of your water supply. Temperature can be useful for showing the risk of bacterial or microbial growth or gas solubility for water quality.
Monitoring pressure during experiments can ensure safe handling of chemicals and new test processes. This Intrinsically Safe LEO Record can be used to display and log pressures and temperatures to help understand how variations in the pressure and temperature have impacted experiments being carried out and if a change in pressure is beneficial or not. Being Ex rated it is especially useful in experiments with flammable gases or dust.
| Process Thread | ¼” BSP Thread |
| Pressure Connection | Stainless steel AISI 316L |
| Pressure Transducer Diaphragm | Stainless steel AISI 316L |
| Pressure Connection Seal (External) | FKM (75 Shore, -20…200 °C) |
| Display Housing | Faradex AS-1003 |
| Front Glass | LEXAN® 163R |
| Pressure Transducer Oil Filling | Silicone oil |
| Pressure Ranges | -1 to 30 Bar |
| Accuracy | 0.1%FS |
| Storage Temperature | -10 to +60°C |
| Compensated Temperature Range | 0 to 50°C |
| Protection | IP65 |

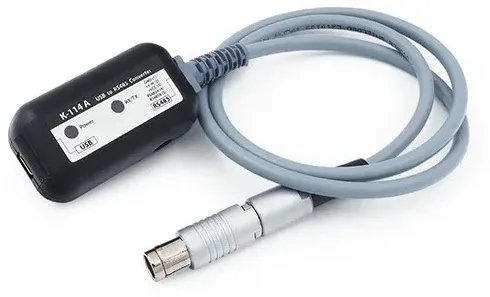

K114A
£165.00

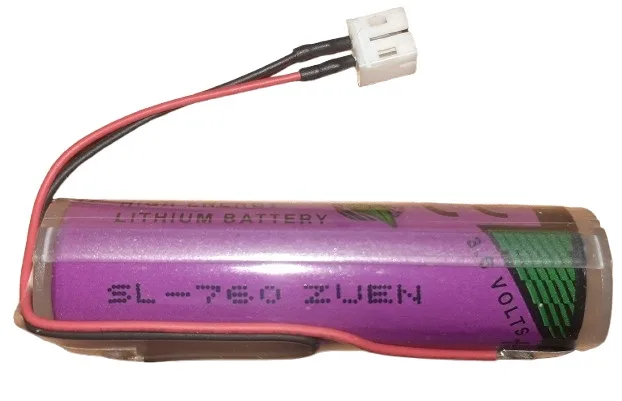

LEO-REC-IS-BATT
£30.00
BN4-4FMA10K-SS
£57.42
NPL-CAL-5 POINTS
£37.50
