Product Applications – LEO-REC-IS-1000BAR-1/4″BSP
The 1,000 Bar, 15,000 psi, range is a popular range for pressure monitoring and often selected for applications requiring lower pressures. The higher range means pressure spikes don’t damage the gauge and only costs a drop in the accuracy.
Features
- High measuring accuracy, resolution and robustness
- High data security due to the use of a non-volatile memory
- Display of the actual pressure and the record status
- Recording of the pressure and temperature
- Battery Life 24 months with 10 second logging.
- PressureSuite Software offers Simple and well structured configuration and data reporting
- Combination of event-controlled recording and interval recording prevents unnecessary data being recorded (i.e. only measuring the pressure changes…)
- Installation data (and comments) of the measuring station can be stored in the instrument
- Pressure connection with G1/4” thread (other threads on demand)

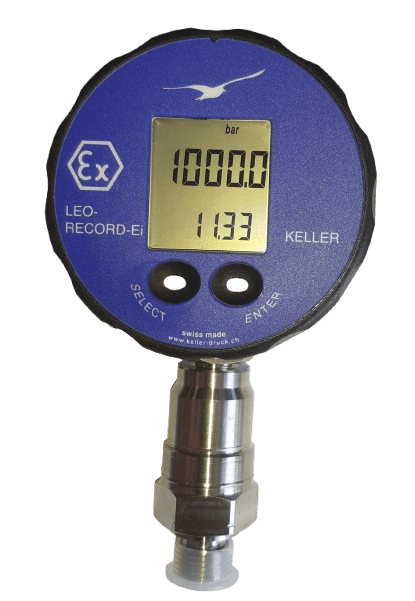

LEO RECORD Ei Intrinsically Safe Version
Specifications for LEO-REC-IS-1000BAR-1/4″BSP
| Process Thread | ¼” BSP Thread |
| Pressure Connection | Stainless steel AISI 316L |
| Pressure Transducer Diaphragm | Stainless steel AISI 316L |
| Pressure Connection Seal (External) | FKM (75 Shore, -20…200 °C) |
| Display Housing | Faradex AS-1003 |
| Front Glass | LEXAN® 163R |
| Pressure Transducer Oil Filling | Silicone oil |
| Pressure Ranges | 0 to 1000 Bar |
| Accuracy | 0.1%FS |
| Storage Temperature | -10 to +60°C |
| Compensated Temperature Range | 0 to 50°C |
| Protection | IP65 |
Dimensional Drawing
