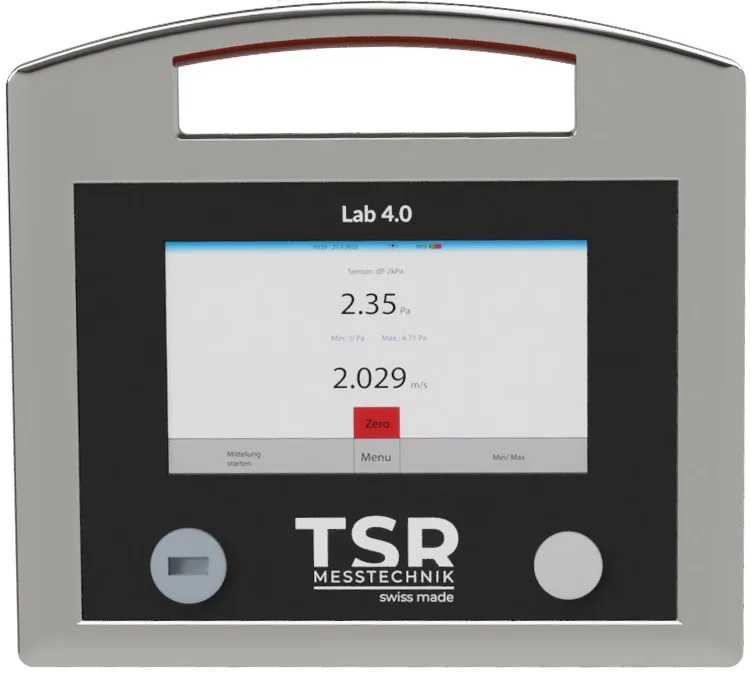

The Lab 4.0 is an instrument suitable for gas analysis in all laboratorial activities. The instrument can be used for differential pressure manometer for very small measuring areas, Particle Measurement System or Environmental Gas Analysis with Volatile Organic Compound (VOC) and Indoor Air Quality (IAQ) Sensors, plus ambient sensors for barometric pressure, temperature and humidity.
Output: via SD-Card
Incl. logger function (up to 10.000.000 measurements)
Measuring units airflow: m/s, km/h, ft/s, mph
Volume flow: m³/h, l/min, m³/s, cfm
Humidity: %RH
Temperature: °C, F, °K
Display: TFT display with touch function
Resolution:
0.001 Airflow / Volumeflow
0.1%RH
0.1 °C /F Temperature
Pressure modules:
+-250 Pa: +- 0.05 Pa, resolution 0.01 Pa
+- 2500 Pa: +- 0.5 Pa, resolution 0.01 Pa
burst overload capability: 100 kPa / long term: 60 kPa
Barometer:
0 – 400 kPa (4 Bar): +- 1kPa, resolution 0.1 kPa
burst overload capability: 800 kPa / long term: 400 kPa
Measuring rate: 5 measurements/s
Power supply: Li-Po battery 10000mAh
Housing dimensions: 270 x 245 x 95mm (L*H*D)
Lab 4.0 – Particle Measurement System ISO 21501-4
>0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μ
Count efficiency: 50%@≥0.3μm, 100%@≥0.5μm
1.0 cf/min (28,3 l/min) Stainless Steel version
400.0350
£4,449.69
400.0351
£6,675.02
400.0355
£16,175.07
400.0900
£454.79
400.0901
£555.85
