LEO 3 Digital Manometer

Description

Intelligent Transmitter with Digital Indication

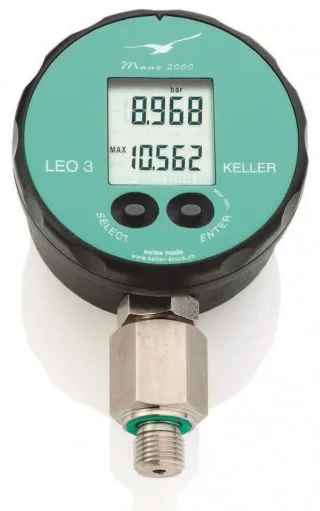

 LEO 3 is a micro-processor based transmitter with digital double-display for pressure (top display) and for the output signal (bottom display). The display is powered from the 4…20 mA current loop.

The following functions can be executed with the front keys:

MAX/MIN:
Activating the right key brings the Max.- and Min.-values to the lower display. After 5 seconds, the analog signal is indicated again.

RESET:
With RESET, the Max.- and Min.-values are set to actual.

ZERO SET:
The zero is set to the applied pressure.

ZERO RES:
Restores the instrument back to factory settings.

UNITS:
The pressure values can be displayed in the following units:
bar, mbar/ hPa, kPa, MPa, PSI, kp/cm2.


Programming the Analog Output via the front Keys:

OUTP SETT:
This sub-menu is used to configure the analog output within the compensated range.

ZERO:
Executing ZERO when pressure is applied sets the analog output to 4 mA.

FS:
Executing FS when pressure is applied sets the analog output to 20 mA.

FACT SETT:
The analogue output is set back to factory settings.


Programming by PC:

The communication with the BUS-capable instrument takes place with the KELLER PROG30/ READ30 software and the K106 converter via the RS485 interface, allowing to read out the pressure values and the instrument characteristics. The analog output can be programmed without applying pressure to the instrument.



Specifications

Gauge Pressure (PR) Absolute Pressure (PAA) Absolute Pressure (PA) Proof Pressure Display Resolution
Pressure Range -1 to 3 Bar 0 to 4 BarA 12 Bar 0.001
-1 to 10 Bar 0 to 11 BarA 30 Bar 0.002
-1 to 30 Bar 0 to 31 BarA 90 Bar 0.01
0 to 101 BarA 300 Bar 0.01
0 to 300 Bar 600 Bar 0.1
0 to 700 Bar 1,200 Bar 0.2
0 to 1,000 Bar 1,200 Bar 0.2
Reference Pressure Atmospheric Pressure 0 Bar Absolute (Vacuum) 1 Bar Absolute To Reference Pressure
Accuracy ±0.1%FS (20-25°C), ±0.2 %FS (0-50°C)
Storage- / Operating Temperature -20…70°C / -10…60°C
Compensated Temperature Range 0…50°C
Protection IP65

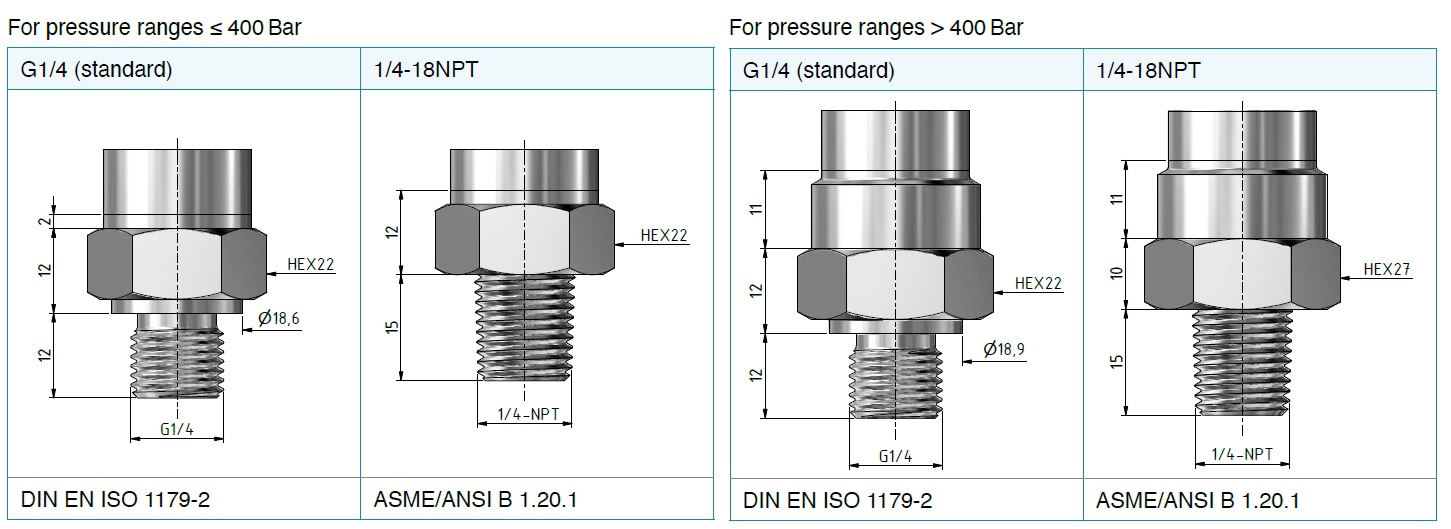

Available Process Connections

Other pressure connections available on request
