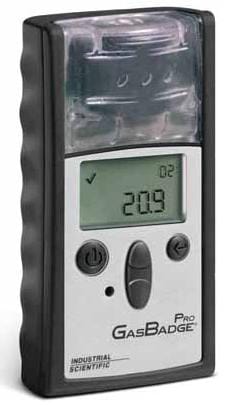

GasBadge Pro Personal Single Gas Monitor for Carbon Monoxide (CO). Range 0-1,500 ppm in 1ppm increments. 1 Year continuous data logging, plus event logging for last 15 alarm events. Backlit LCD display. Ultra-bright LED, vibrating and audible (95dB) alarms with STEL and TWA and selectable low and high alarm levels. Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold, RFI resistant. Dimensions: 94 x 50.8 x 27.9mm, weight 85g. Operating range -40 to 60°C, 0-99%RH. Certification ATEX: Ex iaI/EX ia IIC T4; Equipment Group and Category: I M1/II 1G. IndSci Part No. 18100060-1.
£505.00
| Gas Detected: | Carbon Monoxide (CO) |
| Sensor Type: | Electrochemical |
| Measuring Range: | 0-1,500ppm |
| Resolution: | 1ppm |
| Accuracy (at calibration temperature): | ±5% |
| Low Alarm Setpoint: | 35 ppm |
| High Alarm Setpoint: | 70 ppm |
| TWA Alarm Setpoint | 35 ppm |
| STEL Alarm Setpoint: | 400 ppm |
| Operating Conditions: | -40 to +50°C, 15-90%RH |
| Calibration Gas: | 100ppm CO |
| Replacement Sensor: | 17124983-1 |
| Display: | Custom LCD with graphical icons for easy use Segmented display for direct gas readings Backlight for low light conditions “Go/No Go” display mode Peak reading indication |
||
| Alarms: | User Selectable Low and High Alarms Ultra-bright LEDs Vibration Alarm Audible 95dB |
||
| Certification: | ATEX, CSA, IECEx, INMETRO, UL (C-US), China Ex, & KOSHA. | ||
| Operating Conditions: | -40 to +60°C, 0-99% RH (non-condensing) | ||
| Enclosure: | Rugged, Water-Resistant Polycarbonate Shell with Protective Concussion-Proof Overmold. RFI Resistant. |
||
| IP Rating: | IP64 | ||
| Battery Pack: | Replaceable 3V, CR2 Lithium Battery, | ||
| Dimensions: | 94 x 50.81 x 27.9mm | ||
| Weight: | 85g | ||
