These light level sensors return a linear 0-10vDC signal representing the Lux level at the photo-diode cell. The sensors are typically used in lighting strategies to optimise energy efficiency through dimming and/or disabling of lights as required or as sensors to monitor light levels over a period of time. The LL-C-V is an internal ceiling mounted light sensor. Both units have a fixed range of 10-2,000 Lux and operate from a 24vDC power supply.
| Model | LL-C-V | |
| Sensor | Photo-diode | |
| Accuracy | ±5% across range | |
| Light Range | 10-2,000 Lux | |
| Output | 0-10V | |
| Power Supply | 24vAC/DC | |
| Installation | Ceiling mounted | |
| Operating Conditions | -10 to +40°C, 90%RH non-condensing | |
| Housing Material | Flame Retardant ABS, Polypropylene | |
| IP Rating | IP30 | |

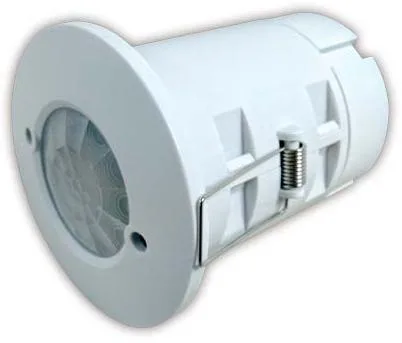

LL-C-V
£78.16

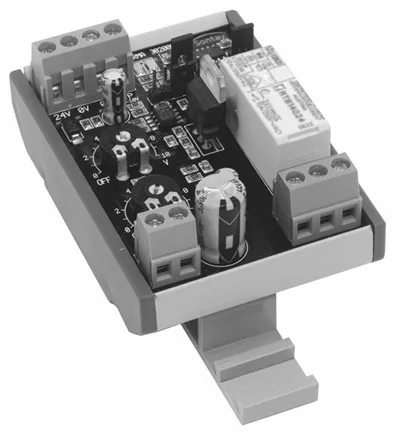

IO-RM-A
£29.04
