Description
Features

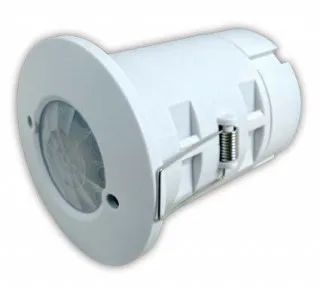

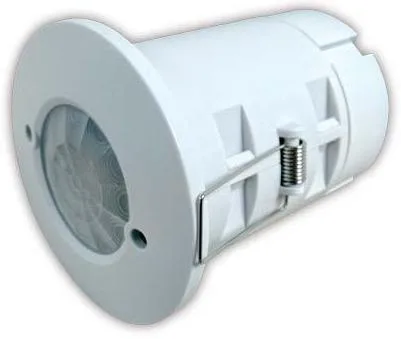

- Combined light level and occupancy sensor
- 10-2,000 Lux range
- Adjustable off delay timer
- Switching light level fully adjustable
- Flush ceiling mounted
- 230vAC @ 50Hz power supply
- Switching relay output (Max 8A)
Specifications
| Light Level Sensor: | Photo-sensitive device |
| Occupancy Sensor: | Passive Infra-red detector |
| Light Range: | 10-2,000 Lux |
| Switching Capacity: | Incandescent – 8A, Fluorescent – 6A |
| Off Delay Timer: | 10 secs to 30 min |
| Power Supply: | 230vAC @ 50 Hz |
| Installation: | Ceiling mounted |
| Operating Conditions: | -10 to +40°C, 90%RH non-condensing |
| Housing Material: | Flame Retardant ABS, Polypropylene |
| IP Rating: | IP30 |
The switching point and time delay are set by concealed adjustment potentiometers behind the lens bezel. In normal operation, the lights will only be switched on when the room is occupied and the light levels are below the desired level. Note, when the LUX control is at maximum the lights will always come on with occupancy.
