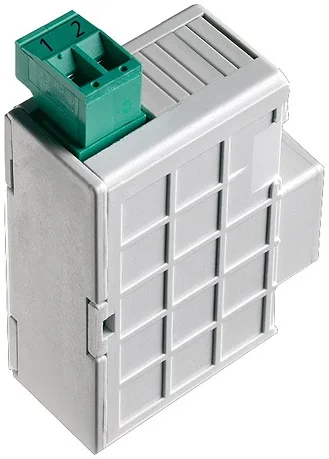

IF-96009: LONWORKS Communication Interface for Nemo 96HD/HD+ Series

The IF-96009 module, used in combination with Nemo 96HD/HD+ series meters, enables LONWORKS communication.

Features:

• LONWORKS Communication:
  • Galvanically insulated from measurement inputs and auxiliary supply.
  • Transceiver: FTT10.

Transmitted Data:

• Voltage phase L1
• Voltage phase L2
• Voltage phase L3
• Linked voltage L1-L2
• Linked voltage L2-L3
• Linked voltage L1-L3
• Frequency
• Current phase L1
• Current phase L2
• Current phase L3
• Neutral current
• Active power
• Reactive power
• Apparent power
• Power demand
• Maximum power demand
• Active power phase L1
• Active power phase L2
• Active power phase L3
• Power Factor
• Active energy (Heart – beat function)
• Reactive energy (Heart – beat function)

Auxiliary Supply:

• The rated burden for the combination of Nemo 96HD/HD+ multifunction meters and IF-96009 interface is ≤5VA.

Insulation (EN61010):

• A.C. voltage test: 1kV r.m.s., 50Hz for 1 minute.
• Considered circuits: Measurement, LONWORKS communication.

Housing:

• Type: Module with a connector for connection to Nemo 96HD/HD+ meters.
• Maximum Depth: 81mm (including both the meter and module).
• Connections: Screw terminals.
• Terminal Range:
  • Rigid cable max. 4.5mm².
  • Flexible cable max. 2.5mm².
• Material: Self-extinguishing polycarbonate.
• Weight: 50 grams.

Firmware Version:

• The firmware version required for supporting the module’s functions is specified in the document. The firmware can be updated in the field using IF-96001 (RS485) or IF-96002 (RS232) communication modules, along with a PC and the necessary software.
