Description

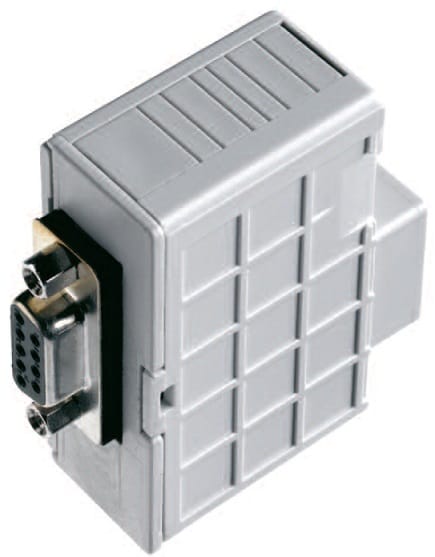

IF-96007A: PROFIBUS Communication Interface for Nemo 96HD/HD+/HDLe Series

The IF-96007A module, when combined with meters from the Nemo 96HD/HD+/HDLe series, makes all relevant measurement data and configuration parameters accessible via PROFIBUS communication.

PROFIBUS Communication Specifications:

• Isolation: Galvanically insulated from measurement inputs and auxiliary power.
• Standard: PROFIBUS EN50170 – DP0.
• Response Time: Required response time to request: ≤10ms.
• Maximum Distance: From the supervisor: according to the standard.
• Transmission Speed: Up to 12Mb.
• Address Range: 1 to 127.

Auxiliary Supply:

• Power Consumption: Rated burden: ≤5VA.

Insulation (EN61010):

• Testing Voltage: A.C. voltage test: 2kV r.m.s. value at 50Hz for 1 minute.
• Considered Circuits: Measurement input, auxiliary supply, PROFIBUS communication.

Housing:

• Type: Module with a connector for the Nemo 96HD/HD+/HDLe.
• Maximum Depth: 81mm (including the module).
• Connections: 9-pin connector.
• Material: Self-extinguishing polycarbonate.
• Weight: 50 grams.

Firmware Version:

The table indicates compatible meters for the IF96007A module, along with position constraints and the maximum number of modules usable. It also shows the firmware version of the meter necessary to support the additional module’s function.
