Description

Applications

Humidity measurements in industrial processes in ATEX rated (EX) zones, compatible with the HF5 EX transmitters.

Features

• Safe operation in areas with explosion risk.
• Intrinsically safe electrical construction
• No IS power supply required, power supply via HF5 EX transmitter (10-28vDC)
• Measures relative humidity and temperature, optional dew point and other calculated parameters.
• Temperature measurement range -40 to +60°C (at probe)
• Accuracy: ±0.8%RH / ±0.1°C

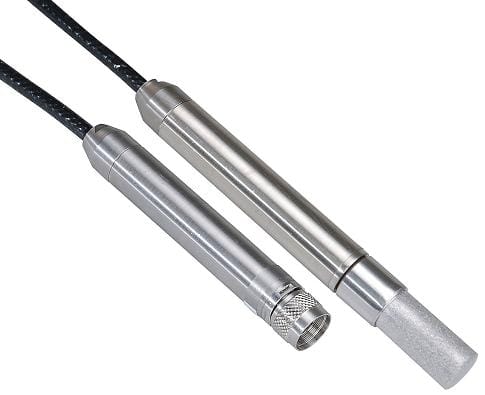

HC2-IMxxx-EX Probe

2, 5 or 10m cable mounted 125 or 285mm stainless steel probe for humidity and temperature with digital output signal for connection to the HF5 EX series of transmitters.

HC2-IExxx-EX Probe

2, 5 or 10m cable mounted probe with screw-in stainelss steel probe from humidity and temperature with digital output signal for connection to the HF5 EX series of transmitters. The IE probe has a 1/2″BSP or 1/2″NPT thread.

HC2-SM-EX Probe

104 x 15mm probe humidity and temperature with digital output signal for direct connection to the HF5 Ex series of transmitters.
