HYGROCLIP 2. Sword Measurement Probes.

HYGROCLIP 2. Sword Measurement Probes.

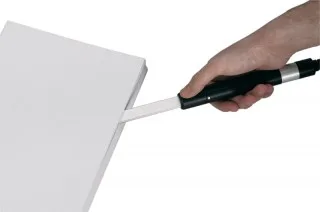

Hygroclip 2 Sword probes measure humidity (ERH) and temperature in paper, card, textiles and any sheet materials. The handheld probe is robust yet lightweight and the sword has rounded edges to minimise insertion damage, and thermally equilibrates extremely quickly with the material to give you a fast result.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • Measures relative humidity, temperature and dew/frost point.
  • Temperature range -40°C up to +85°C
  • Humidity range 0-100%RH
  • UART interface and freely scalable analog signals 0-1V
  • Standard scaling 0-1V = 0-100%RH & -40 to 60°C
  • Probe with ‘standard’ adjustment profile, factory adjustment certificate



Specifications

Product Ref HC2-HS28 HC2-HS42
Type Sword probe with air slots – 2m TPU cable
Temp & RH Ranges 0-100% RH, -40°C to 85°C
Handle Anthracite
Adjustment At 23°C and 10, 35 & 80 %RH
Accuracy ±0.8%RH / ±0.1°C
Probe Length 280mm 420mm

This probe is compatible with the Hygropalm 22.

Product

Ref

Price

Product Description

HC2-HS42

£795.00

HygroClip 2 Sword Probe for temperature and humidity measurements. Default ranges: Temperature -40 to +85°C and Humidity 0-100%RH, Accuracy ±0.8% RH, ±0.1°C. 420mm handheld cable mounted sword probe with 2m cable. The 4mm Aluminium sword has rounded edges to minimise insertion damage and thermally equilibrates extremely quickly with the material to give you a fast response. Ideal probe for measurements in paper, card, textiles and any sheet materials.
MORE INFO
Add to basket

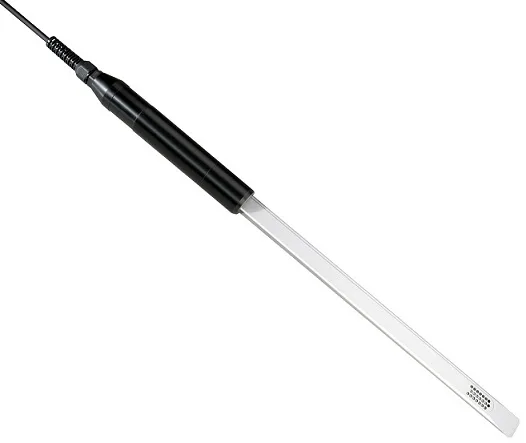

HC2-HS28 Rotronic Sword Probe

HC2-HS28

£986.00

HygroClip 2 Sword Probe for temperature and humidity measurements. Default ranges: Temperature -40 to +85°C and Humidity 0-100%RH, Accuracy ±0.8% RH, ±0.1°C. 280mm handheld cable mounted sword probe with 2m cable. The 4mm Aluminium sword has rounded edges to minimise insertion damage and thermally equilibrates extremely quickly with the material to give you a fast response. Ideal probe for measurements in paper, card, textiles and any sheet materials.
MORE INFO
Add to basket
