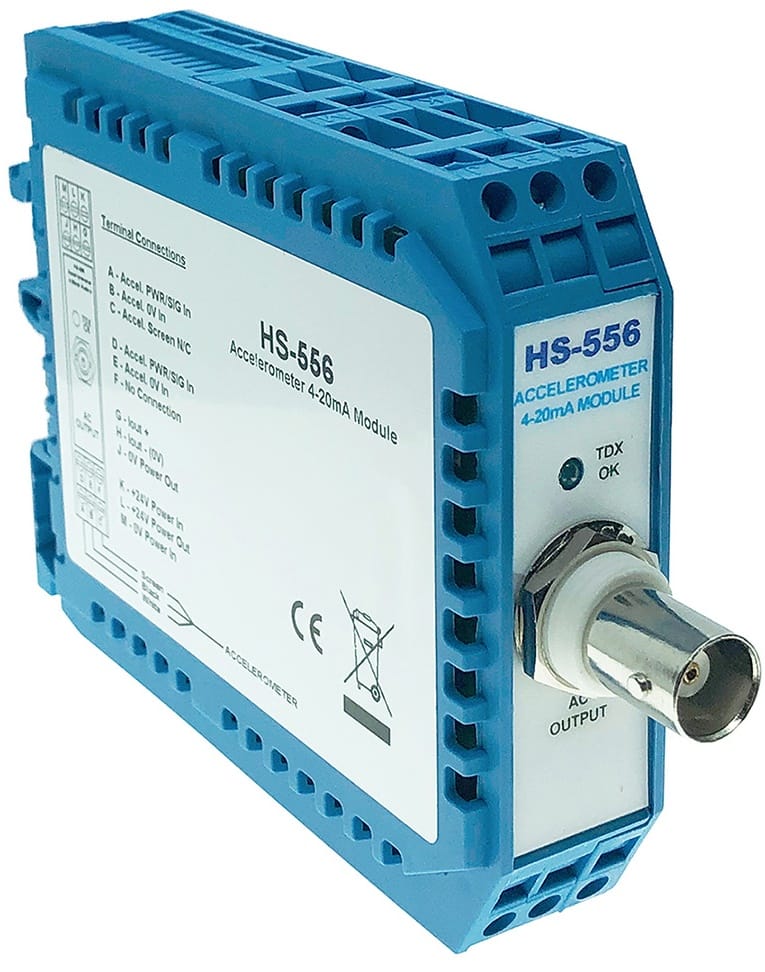

HS-556 Vibration Module with 4-20mA Output

The HS-556 Signal Conditioner is used with a 100mV/g constant current type accelerometer and provides a 4-20mA output suitable for direct input to a vibration monitoring PLC. The 4-20mA output is proportional to true RMS velocity in mm/s. A buffered AC output is provided via a BNC connector to enable vibration analysis using an FFT signal analyser. The unit is housed in a compact DIN-Rail mounting plastic case and operates from 24VDC at 50mA.

Need help finding the right product?

Downloads

Description

Description

Features

Industrial Accelerometer Input
4-20mA Velocity or ‘g’ Output
TDX OK Function
Low Pass Filter
Din Rail Mounted
Buffered Accelerometer Output (for data collection) via BNC

Specifications

Feature:	Single Channel
Inputs:	100mV/g Constant Current Accelerometer (Other Sensitivities Available)
Input Range:	To Be Specified
Case Material:	Plastic
Mounting:	DIN Rail TS35 (Top Hat)
Dimensions:	120 x 75 x 23mm
Conductor Size:	0.5 to 4mm
Weight:	60gms

Product

Ref

Price

Product Description

HS-556

£180.00

The HS-556 Signal Conditioner is used with a 100mV/g constant current type accelerometer and provides a 4-20mA output suitable for direct input to a vibration monitoring PLC. The 4-20mA output is proportional to true RMS velocity in mm/s. A buffered AC output is provided via a BNC connector to enable vibration analysis using an FFT signal analyser. The unit is housed in a compact DIN-Rail mounting plastic case and operates from 24VDC at 50mA.
