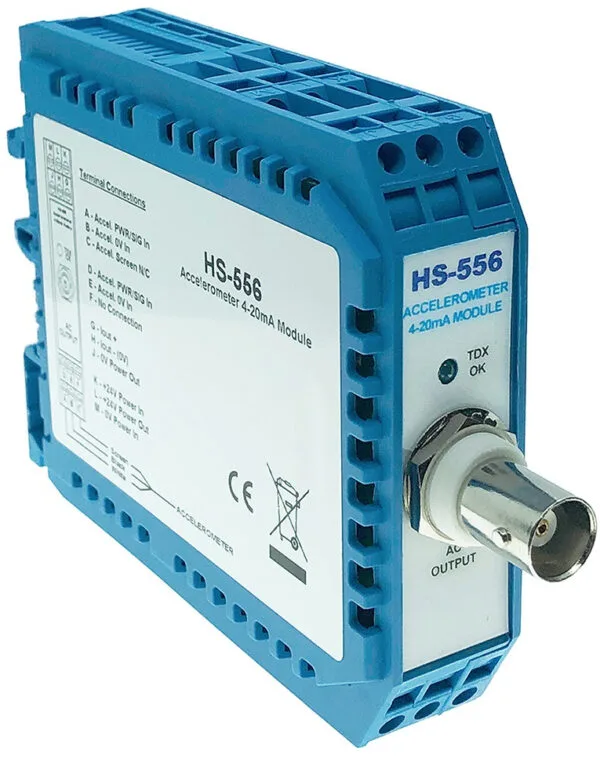

The HS-556 Signal Conditioner is used with a 100mV/g constant current type accelerometer and provides a 4-20mA output suitable for direct input to a vibration monitoring PLC. The 4-20mA output is proportional to true RMS velocity in mm/s. A buffered AC output is provided via a BNC connector to enable vibration analysis using an FFT signal analyser. The unit is housed in a compact DIN-Rail mounting plastic case and operates from 24VDC at 50mA.
£180.00
| Feature: | Single Channel |
| Inputs: | 100mV/g Constant Current Accelerometer (Other Sensitivities Available) |
| Input Range: | To Be Specified |
| Case Material: | Plastic |
| Mounting: | DIN Rail TS35 (Top Hat) |
| Dimensions: | 120 x 75 x 23mm |
| Conductor Size: | 0.5 to 4mm |
| Weight: | 60gms |
FeatureInputsAcceleration RangesCase MaterialMountingDimensionsConductor SizeWeight
| Single Channel |
| 100 mV/g constant current accelerometer (other sensitivities available) |
| To be specified |
| Plastic |
| Din Rail TS35 (Top Hat) |
| 120 x 75 x 23 mm / 4.7 x 3 x 1 mm (H x D x W) |
| 0.5 to 4.0mm/ 0.02 to 0.2in |
| 60gms / 2.1 oz. (nom) |
