Description
Applications
- Vibration Monitoring in various different industries, including Building Services, Civil Engineering, Paper and Pulp, Mining, Metals Manufacture, Utilities, Automotive, Water and Waste Treatment, Pharmaceutical, Aerospace, etc.
- Providing accurate condition details of Fans, Motors, Pumps, Compressors, Centrifuges, Conveyers, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment, etc
Specifications

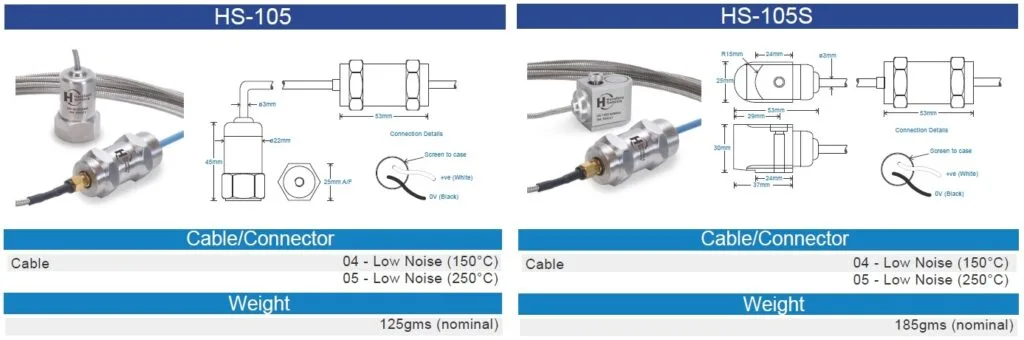

| Model | HS-105 | HS-105S |
| Electrical Connection: | Top Entry | Side Entry |
| Electrical Noise: | 0.1mg max | |
| Current Range: | 0.5mA to 8mA | |
| Bias Voltage: | 10 – 12 Volts DC | |
| Settling Time: | 2 seconds | |
| Output Impedance: | 200 Ohms max. | |
| Case Isolation: | >108 Ohms at 500 Volts | |
| Case Material: | Stainless Steel | |
| Sensing Element: | PZT/Compression | |
| Mounting Torque: | 8Nm | |
