Description

Features

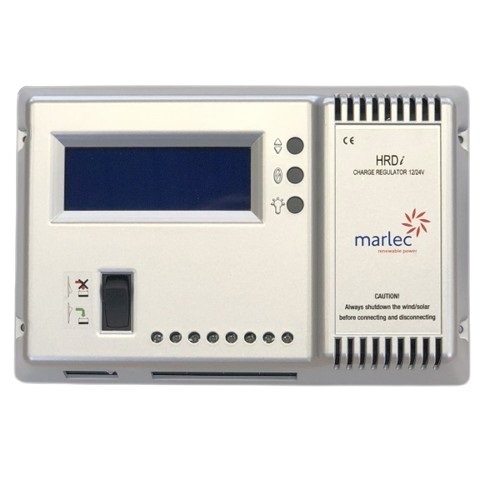

• Clear alpha-numeric digital LCD screen with user display options

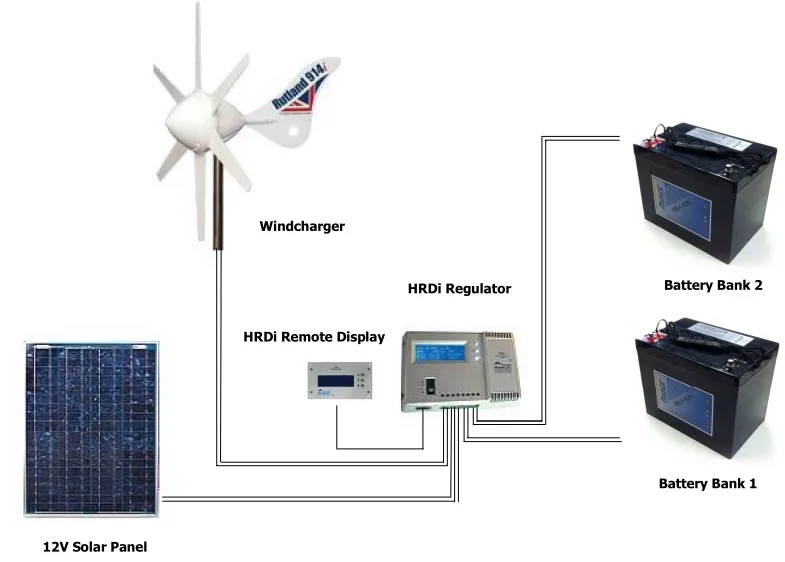

• Connectable to up to two independent battery banks
• Provides charging to the lowest battery and show each ones voltage
• Push button activated and timer controlled back light
• Auto configuration to 12 or 24 V supply
• Latest technology micro controller based system shuts wind charger down when batteries are full
• Wall mounted modern moulded structure with easy access connection ports
• Manual shutdown switch
• Bulk and float phase charge control indicated on LCD
• Temperature compensation of charge voltage using internal sensor or external sensor also supplied
• Optional remote display can be added via dedicated port
• Accepts up to 6 mm² cable (SWG 11 or AWG 9)
• Designed for use with Rutland 504, 914i or FM910-4 plus up to 160W of solar panels

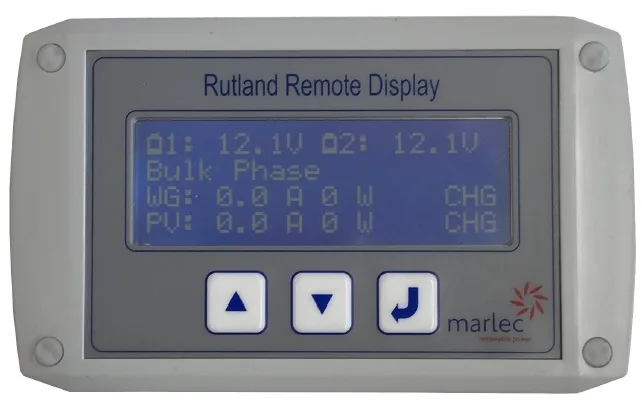

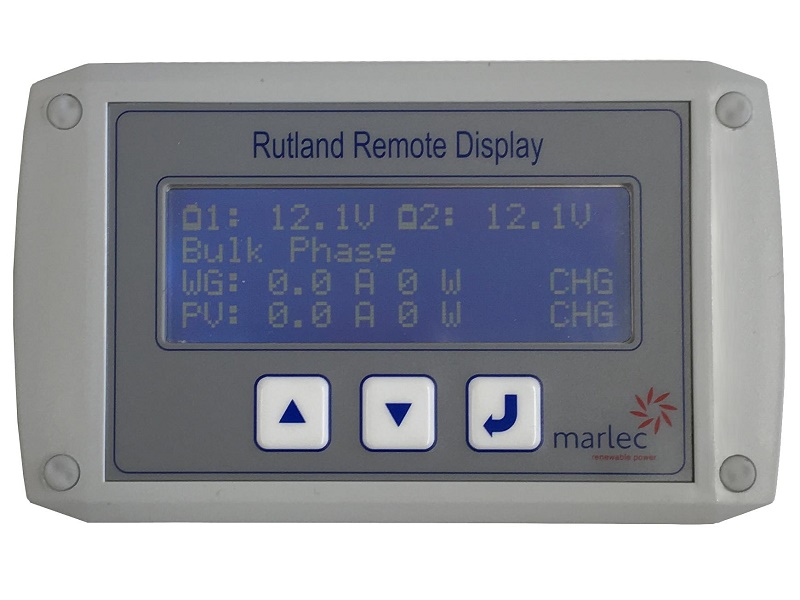

HRDi Remote Display

View the display information of the HRDi controller at a more convenient location such as the instrument panel or just in a more accessible location

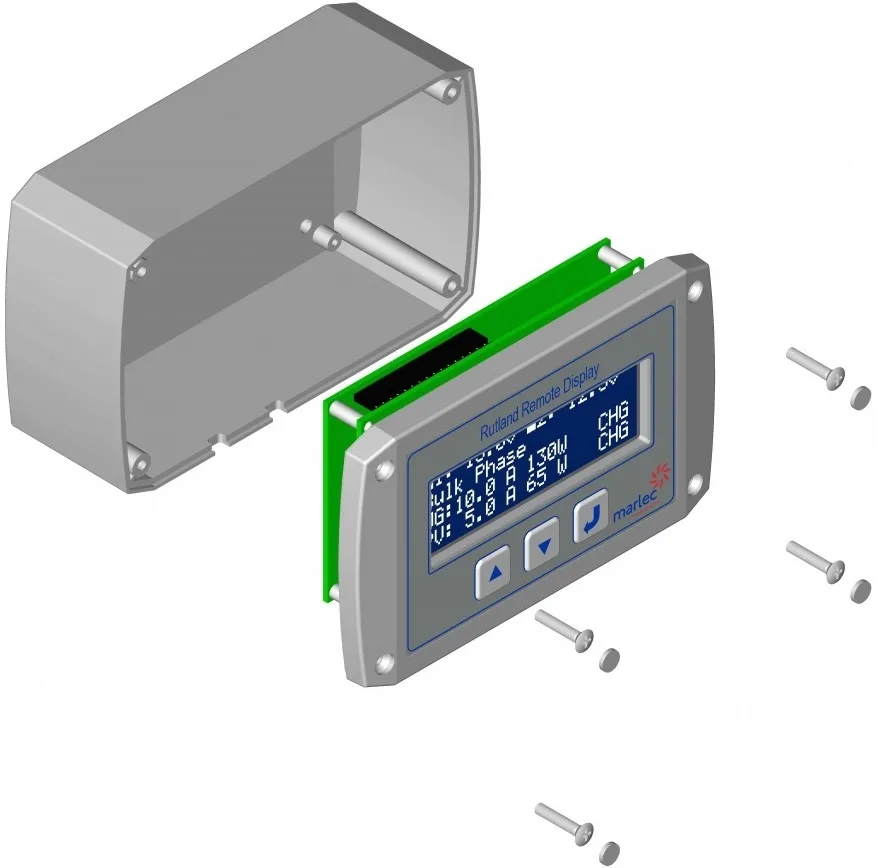

• Recess Panel Mount for a flush finish on your consol or surface mount
• Reprogrammable features
• 3m connecting cable supplied
• Can be used to stall Windcharger for your convenience

Dimensions:

• Surface mount : 125 x 75 x 50mm  Weight : 203g
• Recess Mount : 125 x 75 x 9mm  Weight :132g
• Recess Mount Cut Out : 100 x 62
