Description

The Keller HPX-200BAR High Pressure Calibrators offer highly accurate calibration across pressure ranges up to 200 Bar. The HPX-200BAR calibrator is designed to generate high pressures up to 200 Bar and integrates a pressure generator and display within a single functional housing. This allows the user to rapidly build-up pressure and calibrate both mechanical and electronic pressure measurement devices through comparative measurements. The built-in display allows checking pressure readings in real-time and for leak testing of small pressurised systems.

Using the K114A and software, the readings can be sent to a computer and this allow the readings to be saved, processed or managed as the user desires. This can be used to generate reports for the testing being carried out and provide the data needed for internal paperwork. The 200 Bar range of the HPX-200BAR means this can be used to test sensors before being used in fuel injection or material testing processes.

Supplied in a robust carrying case, the calibrator and its accessories are well-suited for field use.

Features

• Measurement accuracy: <0.05% of the 200 Bar pressure range
• Measurement interval: 0.5 seconds
• Pressure generation by means of hydraulic oil (HLP 22 BP)
• Battery-powered (normal commercially available button-cell battery)
• Battery lifetime: > 2000 hours in continuous operation
• K114A USB interface converter: included in the scope of delivery
• Ambient characteristics: 0-50 °C / 5-95% relative humidity
• CE compliant / RoHS compliant

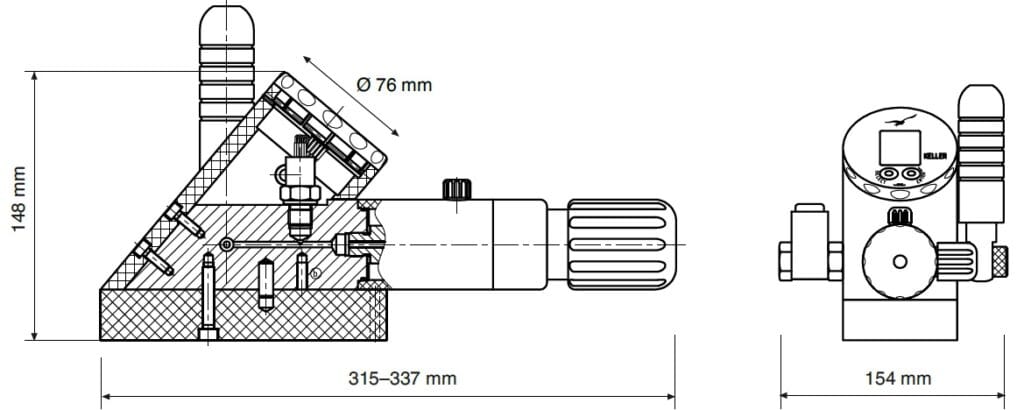

Technical Drawing

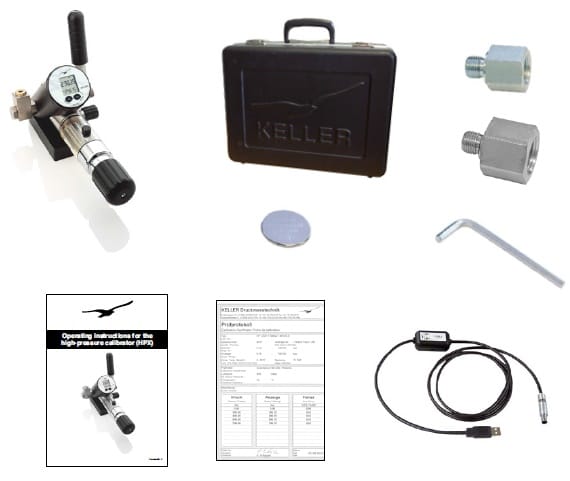

 Scope of Supply

• Calibrator (including oil filling)
• Carrying case
• Spare battery, type CR2430 (3,0 V)
• Test object adapter G 1/4”–G 3/8”
• Test object adapter G 1/4”–G 1/2”
• Allen key(s)
• USB interface converter, K-114A
• Test record (5 points)
• Operating instructions
