Description
Features
- +/-0.1°C Accuracy
- 24″ Flexible Probe
- Operates up to 140°C
- Can be used with Thermal Barrier for short-term temperature range of -200 to +250°C
- Submersible (IP68)
- User Replaceable Battery
- Programmable Start & Stop Time
- Engraved Label
- Battery Life Indicator
Specifications

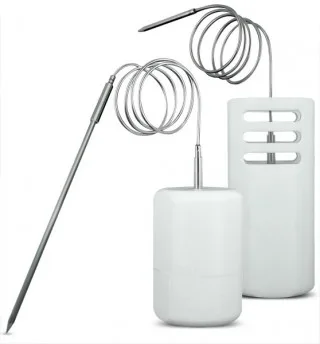

HiTemp140-PT Data Logger
| Temperature Sensor: | 100 Ohm Platinum RTD |
| Temperature Probe Range: | -200 to +350°C |
| Temperature Resolution: | 0.01°C |
| Operating Temperature Range: | -40 to +140°C |
| Internal Memory: | 65,536 readings |
| Reading Rate: | 1 sec to 24 Hours |
| Battery Type: | 3.6V High Temp Lithium Battery |
| Battery Life (typical): |
1 year @ 25°C, 1 min logging |
| Enclosure: | 316 Stainless Steel |
| Dimensions (Body): | 48 x 25mm diameter |
| Dimensions (Flexible Probe): | 559 x 1.6mm diameter |
| Dimensions (Probe Tip):
|
PT-1 Probe: 42 x 3.2mm diameter PT-5 Probe: 121 x 3.2mm diameter (25 x 4.8mm handle) |
| Ingress Protection: | IP68 (Fully Submersible) |
Thermal Barrier
| Operating Temperature Range: | -200 to +250°C (Short-term) |
| Dimensions Flush Top: | 70 x 51mm diameter |
| Dimensions Vented Top: | 109 x 51mm diameter |
| Material: | PTFE Enclosure |
