Description
Features
- Up to 1200m+ Transmission Distance
- No drivers required
- Easy to use text menu interface
- Standard Serial Baud Rates up to 115Kps
- 5 ~ 12vDC Supply either through Pin 9 or Jack connector (supplied)
- Point-to-Point configuration or Multi-Point configuration
- Pre-configured out of the box for 9600Bps, 8N1 communications*
- Extended AT commands for more advanced communications
Applications
- POS System(POS Terminal, Printer,Credit Card Settlement machine)
- The Interior of a House/the exterior of a House Electric Bulletin Board
- Monitor/Security System(Security Camera, Server for System)
- The others information Equipment of Serial Data Port
- Connect remote PLC to host PC
- Connect remote data logger to host PC
- Connect data acquisition module to host PC
HandyWave RS232 Serial Kits include many features that are normally found on more expensive solutions including reliable data transfer with error correction and completely transparent protocols for exact data replication. These units can work in environments where there is other wireless equipment, including other HandyWave pairs, harsh industrial locations with electrical noise, indoor or outdoor applications with low power consumption. Kit includes two HPS-120 units, two 500m antennas, power cable and manual. Further HandyWave products such as 1,200m antennas are available in the accessories section.
For quantity orders of 10+ kits please contact sales.

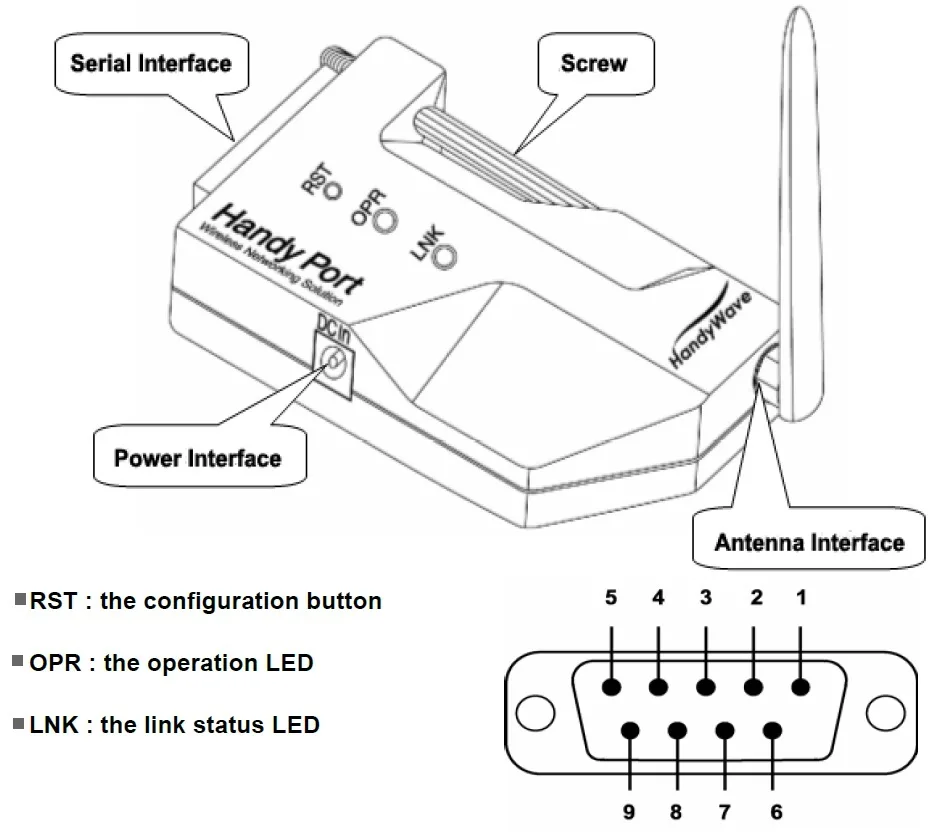

| Pin No. | Signal | Direction | Description |
| 1 | DCD | Output | Data Carrier Detect |
| 2 | TxD | Output | Transmitted Data |
| 3 | RxD | Input | Received Data |
| 4 | DSR | Input | Data Set Ready |
| 5 | GND | Common | Signal Ground |
| 6 | DTR | Output | Data Terminal Ready |
| 7 | CTS | Input | Clear to Send |
| 8 | RTS | Output | Request to Send |
| 9 | Vcc | Input | Power (5-12vDC) |
