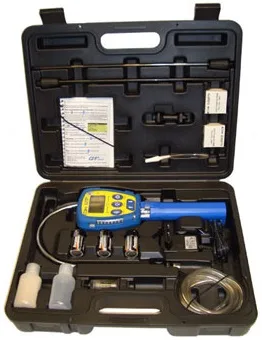

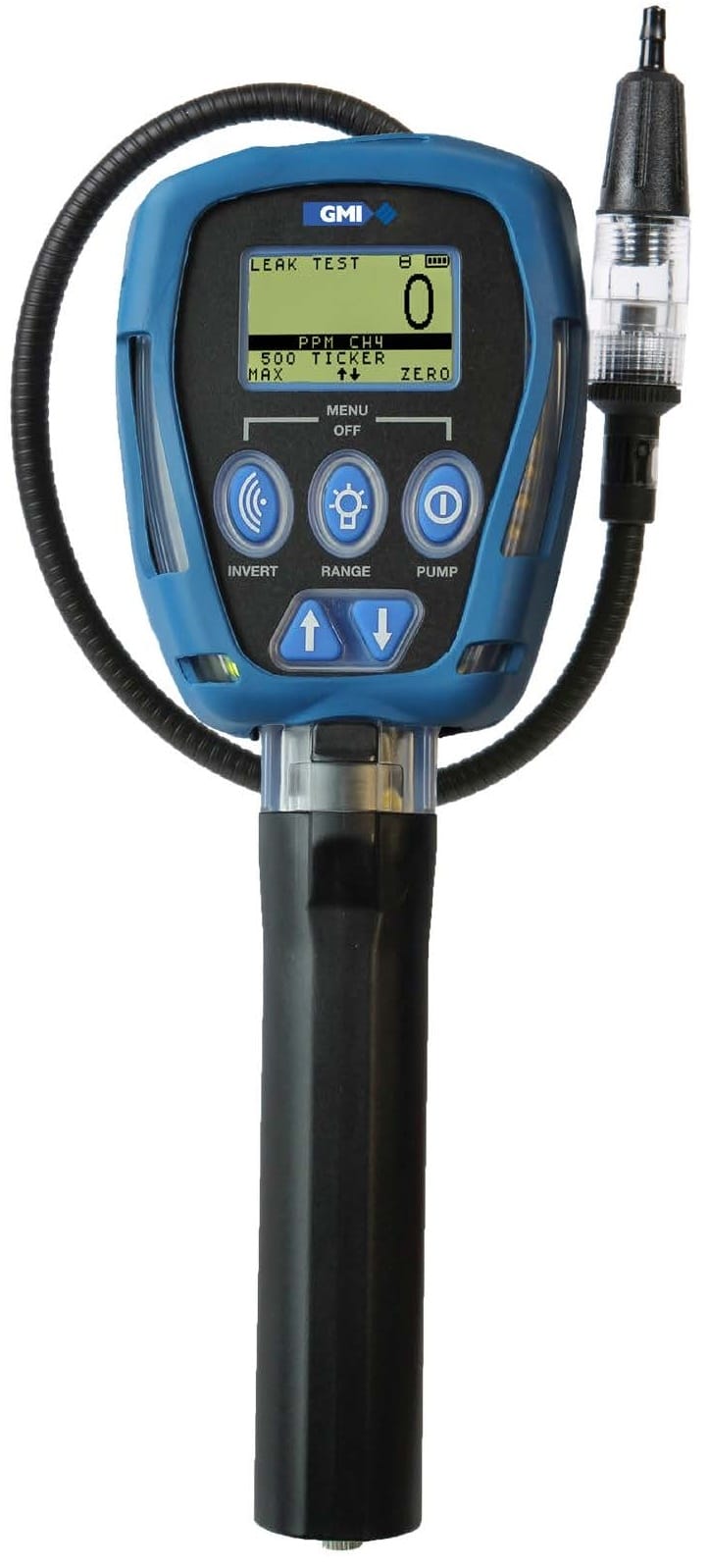

GT Series Gas Leak Detector

Description

Applications

  • Gas Leak Detection/Testing
  • Confined Space Gas Detection
  • Barhole Testing
  • Carbon Monoxide
  • Purge
  • Sniffer
  • Pressure Leak Tightness

Features

  • Multi-application Gas Detector
  • PPM, LEL and Volume flammable gas ranges for leak detection.
  • 0 – 60in. (150mBar) Water Gauge for tightness testing.
  • Manual/Automatic data logging.
  • Audible/Visual ‘Ticker’ (Geiger) indication on ppm range.
  • Loud audible and high visibility alarms.
  • Large button operation with simple display prompts.
  • Integral flashlight.
  • Alkaline or Rechargeable battery options.
  • Charging via simple plug or docking station.
  • Rugged polycarbonate case, sealed to IP54 rating and suitable for outdoor use.

Specifications

 Measuring Ranges  Resolution

0 – 10,000 ppm Flammable
0 -100% LEL Flammable
0 -100% Volume Gas Flammable
0 – 25% Oxygen (O2)
0 – 2000 ppm Carbon Monoxide (CO)
0 – 100 ppm Hydrogen Sulphide (H2S)
0 – 60 in. (0 to 150 mBar) Water Gauge

ppm 0 – 10,000
LEL 0 – 100% (0-9.9%)
Vol Gas 0 – 100%
Oxygen 0 – 25%
CO – 2000ppm
H2S 0 – 100ppm
Water Gauge

1ppm
1%  (0.1%)
1%
0.1%
1ppm
1ppm
0.1in. (1mBar)
 Certification  Environment

Certification:

ATEX II 2G Ex iad IIB T3
UL 913 Class I, Div 1 Groups C and D

Temperature Limits: -20 to + 50°C.
(-4 to +122F.)
Humidity: 0 to 98% RH (non-condensing)
 Alarms  Sampling System

Highly visible flashing LED’s on display panel.
Sounder in excess of 80dB(A),
typically 85dB(A) @12in.

Integral pump with pressure sensor for flow fail detection.
Sample path is protected by a hydrophobic filter
 Physical Properties  Power Supply

Weight: (incl. Probe and Batteries): 0.78kg (1.7lbs)
Dimensions: (Excl. Probe) 290 (H) x 95 (W) x 43 (D) mm.
11.4 (H) x 3.7 (W) x 1.7 (D) in.

3 x (approved LR14) Alkaline or
3 x (approved ‘C’ type) Rechargeable Batteries



All units are supplied with suitable dry cell batteries, which are suitable for all countries. If you require rechargeable batteries, please purchase the relevant approved rechargeable batteries for either ATEX or UL Certified applications. Kits with UL certification, or for use in the USA and Argentina are available on request.
