GT-FIRE Series Gas Leak Detector

Description

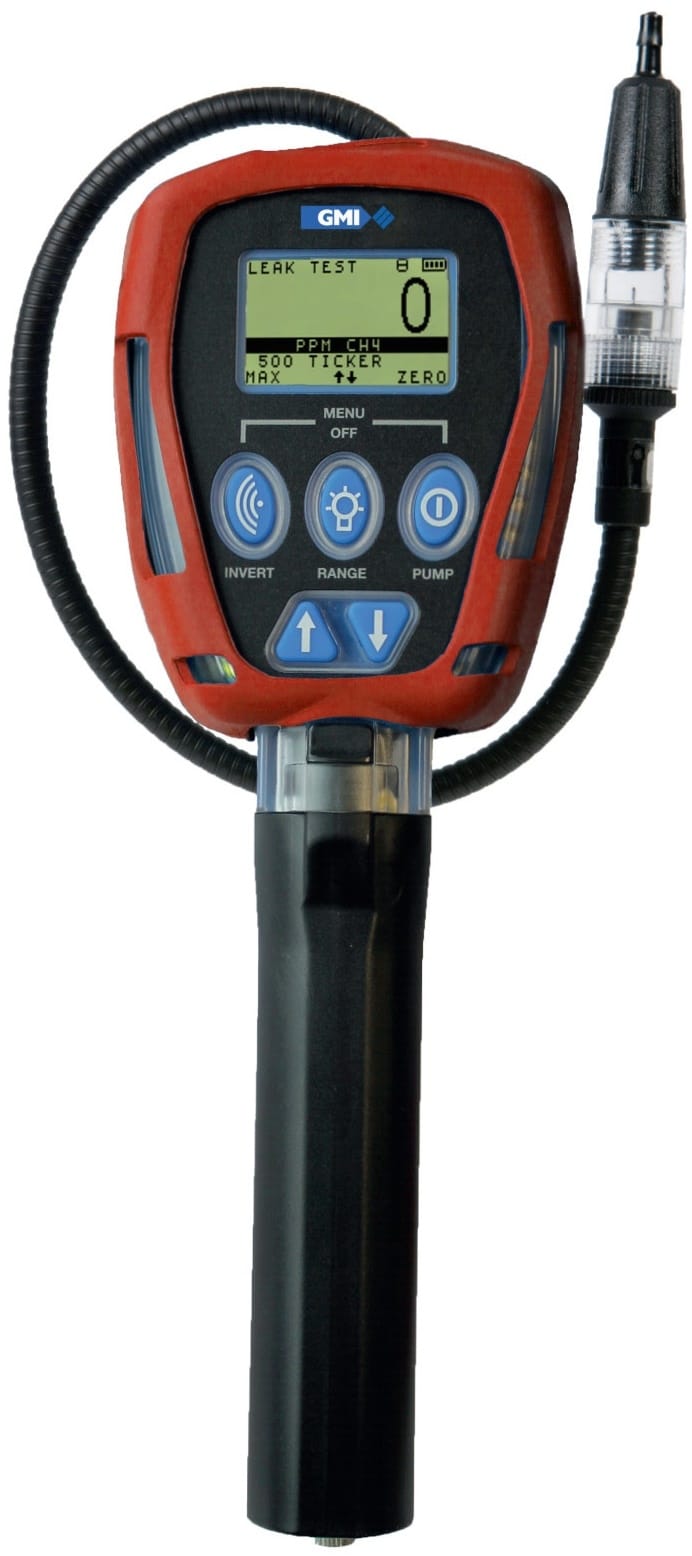

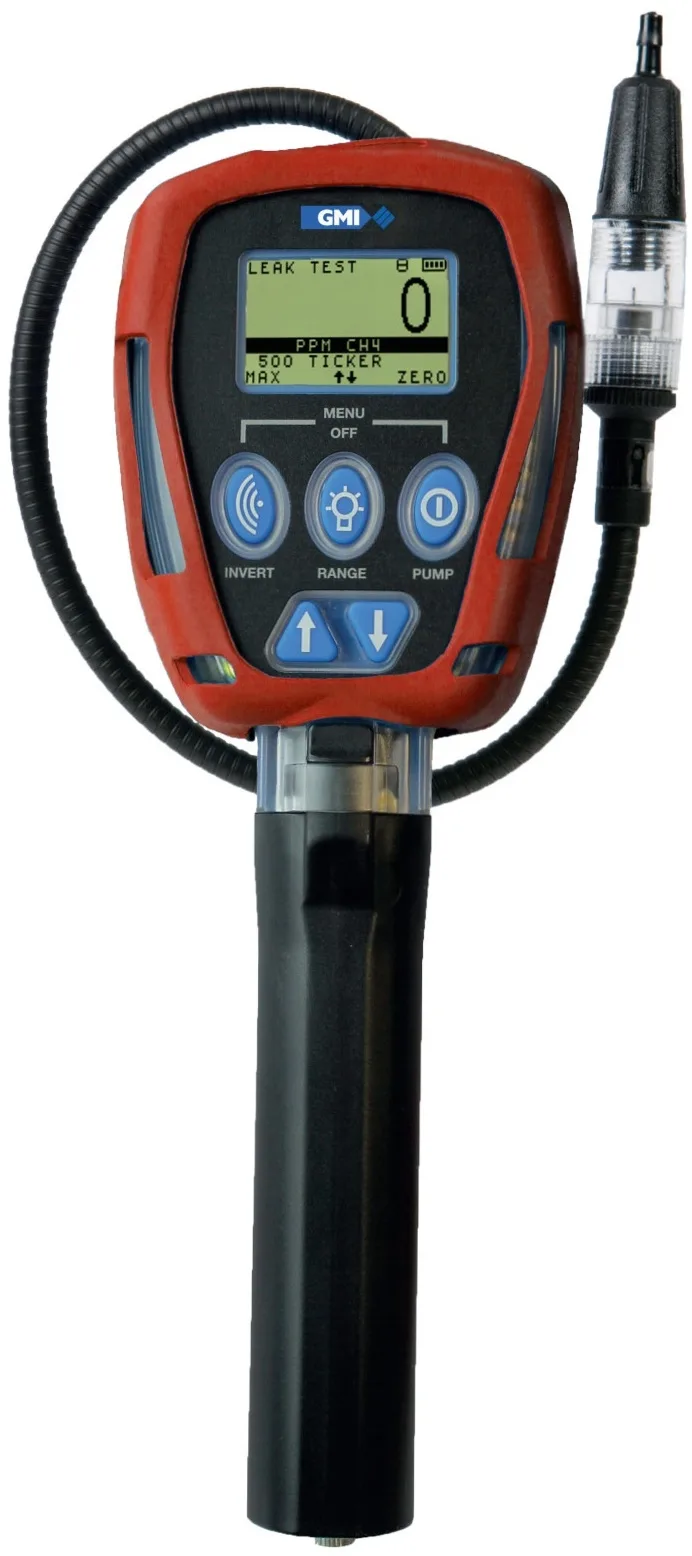

The GMI GT-Fire Series Multi-Function Portable Leak Detector is a highly specialised, hazardous-area-certified handheld gas detection instrument engineered explicitly for fire brigades, emergency first responders, and arson investigation teams. While built on the same rugged architecture as the standard industrial GT platform, the GT-Fire series features a targeted design overhaul that removes the 100% Volume gas mode and internal pressure manometer in favour of critical public safety tools, including a high-intensity front-facing tactical LED flashlight and dual-sided ultra-bright flashing LED alarm pillars. This optimisation streamlines emergency response by allowing firefighters to conduct high-sensitivity flammable gas leak investigations (ppm to %LEL) and toxic atmosphere profiling independently during call-outs, instantly determining if environmental conditions demand self-contained breathing apparatus (SCBA) before teams cross a structural threshold.

Features

  • User-friendly instrument with simple interface
  • Ergonomic design that is easy to operate
  • Visual and audible assistance to support investigation
  • PPM & LEL Flammable gas ranges for leak detection
  • Manual and automation data logging
  • Loud audible and high visual ‘ticker’ (Geiger) on ppm range
  • Integral flashlight with instant menu prompt to turn on and off.
  • Rugged polycarbonate case

Specifications

 Measuring Ranges  Resolution
0 – 10,000 ppm Flammable
0 -100% LEL Flammable
0 – 25% Oxygen (O2)
0 – 2000 ppm Carbon Monoxide (CO)
0 – 100 ppm Hydrogen Sulphide (H2S)		 ppm 0 – 10,000
LEL 0 – 100% (0-9.9%)
Oxygen 0 – 25%
CO – 2000ppm
H2S 0 – 100ppm		 1ppm
1%  (0.1%)
0.1%
1ppm
1ppm
 Certification  Environment
Certification:

SIRA05 ATEX II 2G EEx iad IIB T3
UL 913 Class I, Div 1 Groups C and D

IECEX Ex iad IIB T3

 Temperature Limits: -20 to + 50°C.
(-4 to +122F.)
Humidity: 0 to 95% RH (non-condensing)
 Alarms  Sampling System
Visual: High Visibility LEDs on both sides.
Audible Alarm:85dB(A) @12in.All alarm levels user programmable		 Integral pump with pressure sensor for flow fail detection.
Sample path is protected by a hydrophobic filter
 Physical Properties  Power Supply
Weight: (incl. Probe and Batteries): 0.78kg (1.7lbs)
Dimensions: (Excl. Probe) 290 (H) x 95 (W) x 43 (D) mm.
11.4 (H) x 3.7 (W) x 1.7 (D) in.		 3 x (approved LR14) Type ‘C’ Alkaline or
3 x (approved ‘C’ type) Rechargeable BatteriesList of approved batteries below.

Approved Batteries

1. UL APPROVED MONITORS:

Alkaline:

  1. Any ‘LR14’ type

Rechargeable:

  1. Rechargeable NiMH: Any ‘C’ type

2. ATEX/IECEx/CSA APPROVED MONITORS:

Alkaline:

  1. Energizer No. E93, Alkaline, (Zn/MnO2), LR14 Size ‘C’ cell
  2. Duracell Procell, Alkaline, (Zn/MnO2), LR14 Size ‘C’ cell
  3. Duracell Plus, Alkaline, (Zn/MnO2), LR14 Size ‘C’ cell
  4. Duracell, Alkaline, (Zn/MnO2), LR14 Size ‘C’ cell

Rechargeable:

  1. Panasonic Type HHR-2SRE Nickel-Metal Hydride cell

All units are supplied with suitable dry cell batteries, which are suitable for all countries. If you require rechargeable batteries, please purchase the relevant approved rechargeable batteries for either ATEX or UL Certified applications. Kits with UL certification, or for use in the USA and Argentina are available on request.
