GSKIN Combined Heat Flux and Surface Temperature Sensor

GSKIN Robust Heat Flux Sensors

The GSKIN Robust Heat Flux Sensors are used for measuring heat flux and surface temperature is harsh conditions and are ideal for external building efficiency studies. The sensors have a surface area of 30 x 30mm and 3.3mm thickness to provide a large sensing area. The sensors cover a heat flux range of -15 to +15kW/m², over an operating temperature range of -50 to +80°C. The sensors are able to measure three different types of heat transfer: conduction; convection; and radiation. The sensors are fully calibrated for measuring conductive heat flux for highly precise measurements from a solid surface to gas and between two solid materials. The XO677C-TEMP sensors include an NTC temperature sensor to monitor surface temperatures.

Need help finding the right product?

Downloads

Description

Description

Features

Ultra-high resolution of thermal energies and temperature differences
Low invasiveness & thickness
Versions with connectors compatible with all gSKIN® DLOG data loggers
All sensors with conductive heat flux calibration cohering to ISO 8301

Specifications

GSKIN Sensor	XO677C	XO667C-TEMP
Sensors	Thermoelectric	Thermoelectric/NTC
Sensing Area	30 x 30mm
Sensor Thickness	3.3mm
Heat Flux Range	-15 to +15kW/m²
Noise Equivalent Heat Flux	0.073W/m²/64.3µW
Min Sensitivity	7µV/(W/m²)
Temperature Range	N/A	-30 to 70°C
Accuracy	N/A	±0.2°C (0-30°C), ±0.4°C (-20-60°C)
Operating Temperature	-50 to +80°C
Calibrated Temperature	-30 to +70°C
Termination	1m & TEG Connector	1m Flying Lead

Product

Ref

Price

Product Description

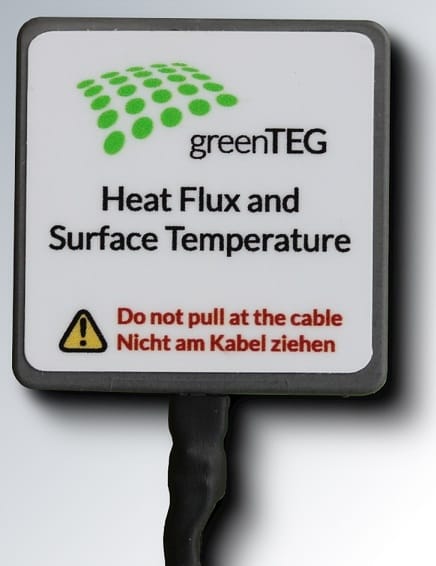

XO677C-TEMP

£733.49

GSKIN Combined Heat Flux and Temperature Sensor. Heat Flux Range: -15 to +15kW/m², min sensitivity 7µV/(W/m²). Temperature Range: -30 to 70°C, accuracy: ±0.2°C (0-30°C), ±0.4°C (-20 to +60°C). Plate sensing area is 30 x 30mm with a 3.3mm thickness. 1.0m flying lead.

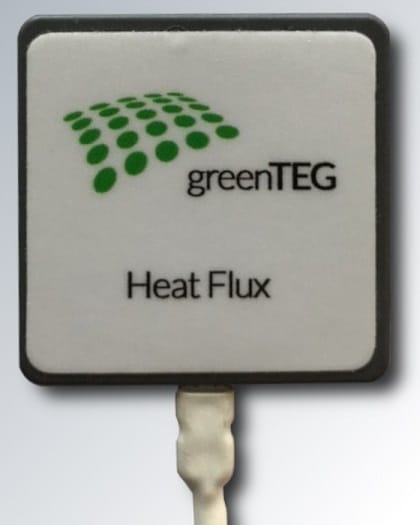

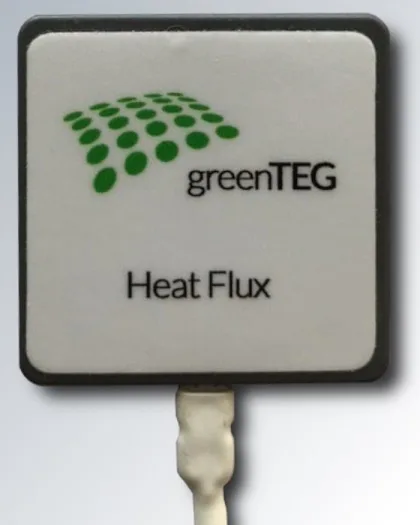

XO677C

£679.47

GSKIN Robust Heat Flux Sensor. Heat flux range -15 to +15kW/m², min sensitivity 7µV/(W/m²). Plate sensing area is 30 x 30mm with a 3.3mm thickness. 1.0m cable terminated in a TEG connector suitable for attaching to a DLOG logger.

MOUNT-1212

£33.54

3.5g Tube of Thermally Conductive and Electrically Insulating Thermal Paste. Operating temperature range -50 to +130°C, thermal conductivity 9.0W/(mK). Ideal for applications where pressure is applied to fix the sensor and will provide a very strong thermal coupling as paste will adapt to the surface inhomogeneities.

MOUNT-1213

£43.48

Thermally conductive and electrically insulating thermal glue. 2 x 3.5g tubes, operating temperature range -40 to +150°C, thermal conductivity 7.5W/(mK). Ideal for applications requiring additional mechanical stability.

MOUNT-1235

£50.93

Double Sided Thermal Tape. Thermally conductive and electrically insulating double-sided tape. Dimensions: 3cm wide, 5m length. Ideal for mounting gSkin U-Value and Heat Flux sensors indoors.

MOUNT-1237

£21.12

250g tub of thermally conductive putty for mounting gSkin sensors. Ideal for repeated mounting and remounting sensors to different locations and surfaces. Suitable for use with various different U-Value and Heat Flux sensors.
