GSKIN Heat Flux Sensors

GSKIN Heat Flux Sensors are used to provide fast and precise thermal measurements. The sensors have a range of surface areas, from as small as 4.4 x 4.4mm and as large as 18 x 18mm. The 0.5mm thickness ensures that the plate minimises distruption to the sensing area. The sensors cover a heat flux range of -150 to +150kW/m², over an operating temperature range of -50 to +150°C. The sensors are able to measure three different types of heat transfer: conduction; convection; and radiation. The sensors are fully calibrated for measuring conductive heat flux for highly precise measurements from a solid surface to gas and between two solid materials with a 0.7 second response time.

Need help finding the right product?

Downloads

Description

Description

GSKIN heat flux sensors can be applied for thermal measurements in control systems where precision and speed are of central importance. The sensors use 29 ultra-sensitive thermocouples to generate a small mV output that is proportional to the heat flux. The heat flux can be calculated by dividing the mV output by the sensors sensitivity. The sensors respond to all three types of heat transfer: conduction, convection and radiation.

Features

Highly sensitive thermal detectors
-150 kW/m² to 150 kW/m² range
Fast Response Time
Minimal Invasiveness
Compact design
Available with conductive heat flux calibration

Specifications

GSKIN Sensor	XM269C	XM279C	XP269C	XP279C	XI269C	XI279C
Sensing Area	4.4 x 4.4mm		10 x 10mm		18 x 18mm
Sensor Thickness	0.5mm
Heat Flux Range	-150 to +150kW/m²
Noise Equivalent Heat Flux	0.34W/m²		0.073W/m²		0.023W/m²
Min Sensitivity	1.5µV/(W/m²)		7.0µV/(W/m²)		22µV/(W/m²)
Response Time	0.7 seconds (0-95%)
Operating Temp	-50 to +150°C
Calibrated Temp	-30 to +70°C
Termination	Flying Lead	TEG Connector	Flying Lead	TEG Connector	Flying Lead	TEG Connector

Associated Research Paper

Universiteit Utrecht, Netherlands – Heat Flux Sensors for Electrochemical Calorimetry

Product

Ref

Price

Product Description

XM279C

£288.18

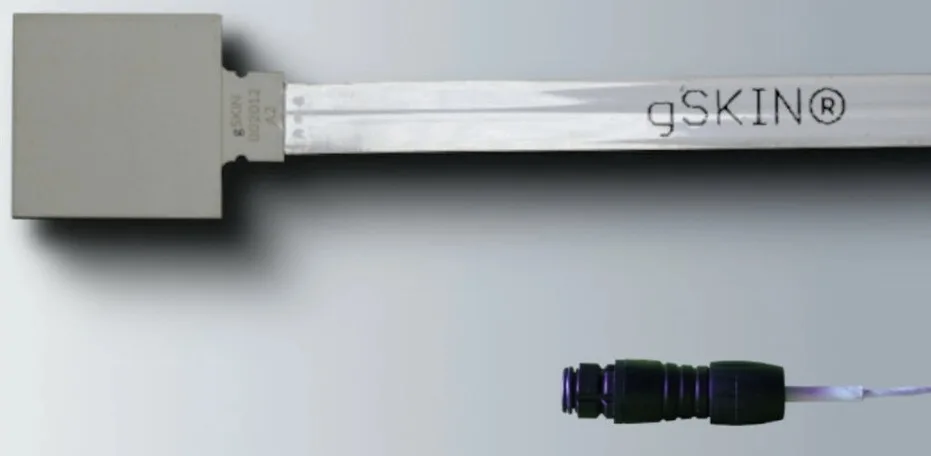

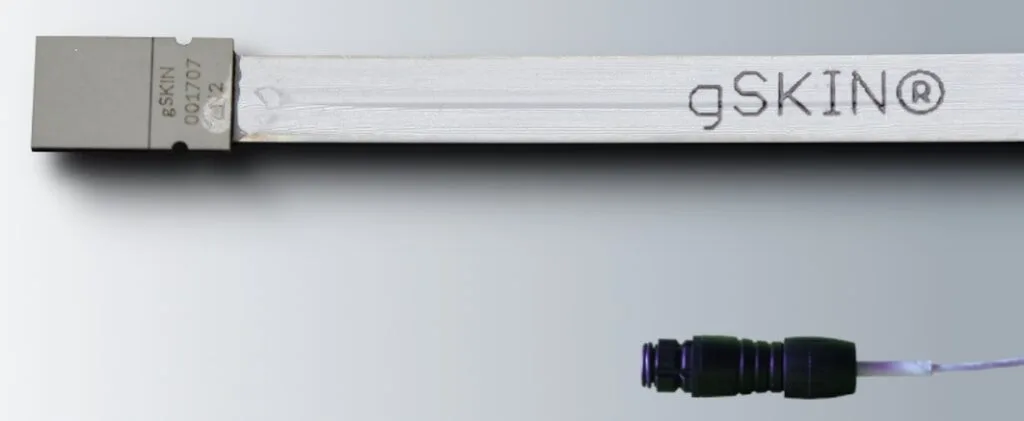

GSKIN Small Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 1.5µV/(W/m²), response time 0.7 secs. Plate sensing area is 4.4 x 4.4mm with a 0.5mm thickness. 1m cable terminated in a TEG connector suitable for attaching to a DLOG logger.

XP279C

£455.88

GSKIN Medium Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 7.0µV/(W/m²), response time 0.7 secs. Plate sensing area is 10 x 10mm with a 0.5mm thickness. 1m cable terminated in a TEG connector suitable for attaching to a DLOG logger.

XI279C

£708.04

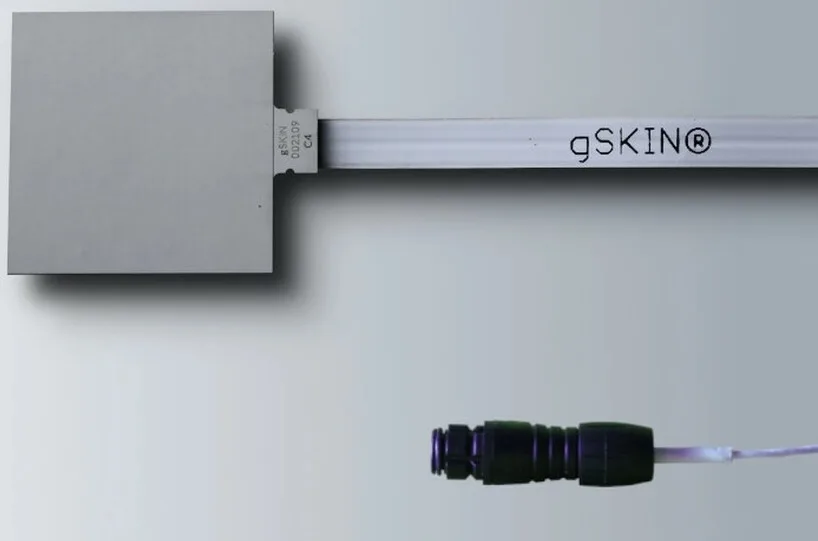

GSKIN Large Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 7.0µV/(W/m²), response time 0.7 secs. Plate sensing area is 18 x 18mm with a 0.5mm thickness. 1m cable terminated in a TEG connector suitable for attaching to a DLOG logger.

XM269C

£279.49

GSKIN Small Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 1.5µV/(W/m²), response time 0.7s. Plate sensing area is 4.4 x 4.4mm with a 0.5mm thickness. 1m flying lead for direction connection to meter or data logger

XP269C

£447.18

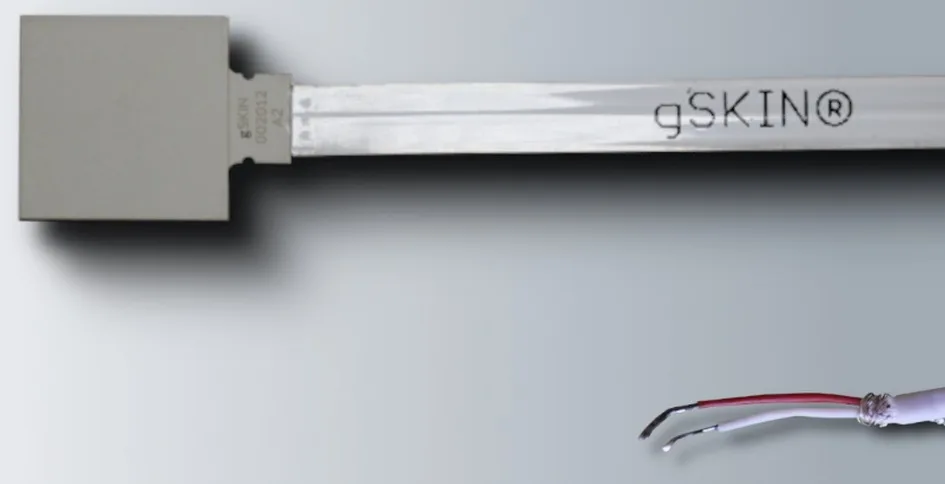

GSKIN Medium Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 7.0µV/(W/m²), response time 0.7 secs. Plate sensing area is 10 x 10mm with a 0.5mm thickness. 1m flying lead for direction connection to meter or data logger.

XI269C

£698.10

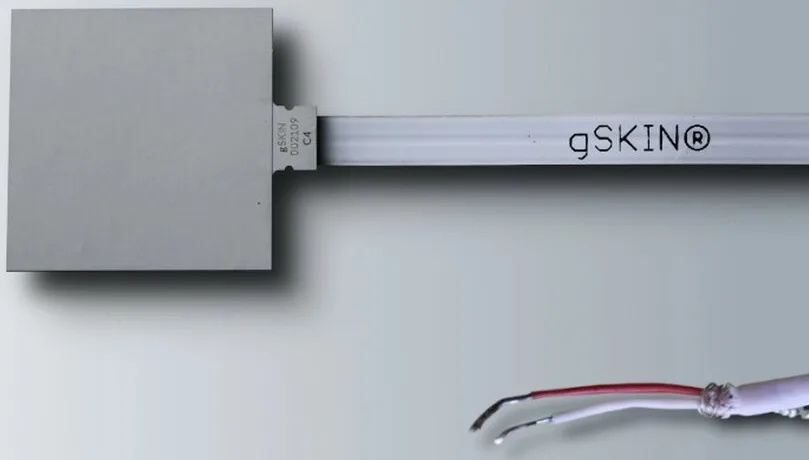

GSKIN Large Heat Flux Sensor. Heat flux range -150 to +150kW/m², min sensitivity 7.0µV/(W/m²), response time 0.7s. Plate sensing area is 18 x 18mm with a 0.5mm thickness. 1m flying lead for direction connection to meter or data logger.
