GSKIN Heat Flux Kit is a plug and play solution to allow for the remote logging of heat flux measurements. The kit combines a GSKIN heat flux plate with a custom designed miniature MSR logger. The logger has an internal memory for up to 2 million readings and can be left to log the data, or in a live operation mode for a real time investigation. Each kit consists of a logger, heat flux sensor, 1.5m cable, mounting tape and software. The logger is configured with the calibration data for the supplied sensor.
| gSKIN Kit | 1583C | |||||
| Heat Flux Sensor | XM279C, (size 4.4 x 4.4mm) | |||||
| Heat Flux Range (W/m2) | ±550.0 | |||||
| Resolutions (W/m2) | <0.41 | |||||
| Data Capacity | 2 million readings | |||||
| Measurement Frequency | 50 secs to 2 days | |||||
| Logger Dimensions | 52 x 20 x 15mm | |||||
| Operating Temperature Range | -50 to +150°C (-25 to +65°C for data logger) | |||||
| Calibrated Temperature Range | -30 to +70°C | |||||
Each kit consists of a logger, sensor, 1.5m cable, mounting tape and software. The logger is configured with the calibration data for the supplied sensor.
GSKINKIT-1583C
£1,006.16
MOUNT-1212
£33.54
MOUNT-1213
£43.48
MOUNT-1235
£50.93

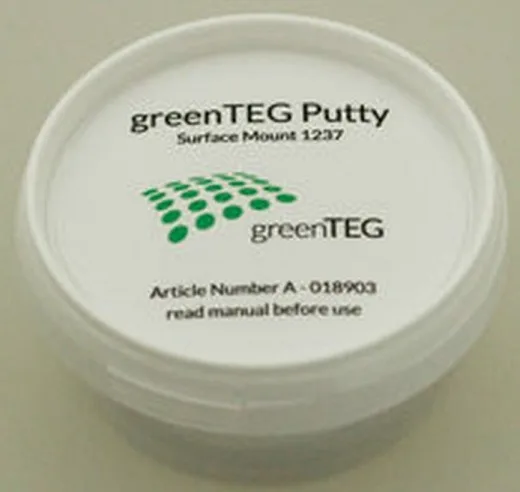

MOUNT-1237
£21.12
