GSKIN Data Logger Kits

GSKIN Data Logger Kits

The GSKIN Data Logger Kits include everything you need to monitor heat flux, thermal radiation and U-Value measurements with a logger, sensor, 1.5m cable, mounting tape and software for live operation and standalone data logging in individual kits. Kits come configured with the calibration data for the supplied sensors.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • Three logging modes: Autonomous; Live Operation; and Triggered
  • Internal memory for up to 2 million readings
  • Logging frequency from 50Hz to 12 Hours
  • Options for heat flux, thermal radiation and U-Value measurements
  • Thermal radiation kits are suitable for solar, laser and LED source power measurements.
  • U-Value kits provide U-Value, Heat Flux and 2 temperature readings.
  • Internal rechargeable Lithium battery
  • Units supplied with software and USB interface
  • Compact design.

Specifications

gSKIN Kit
 Heat Flux
GSKINKIT-1583C		 Thermal Radiation
GSKINKIT-1586R		 U-Value
GSKINKIT-2615C
No of Sensors



 Heat Flux: 1



 Thermal Radiation: 1



 Heat Flux: 1
Temperature: 2
Fitted Sensor XE279C XB479C XO677C
Logging Rate 50Hz to 12 Hours
Operation Modes Autonomous, Triggered and Live
Logger Dimensions 52 x 20 x 15mm
Data Capacity 2 million readings
Operating Temperature Range -50 to +150°C (-25 to +65°C for data logger)

Please refer to individual datasheets for further information on individual logger ranges and resolutions with supplied heat flux and thermal radiation sensors.

Product

Ref

Price

Product Description

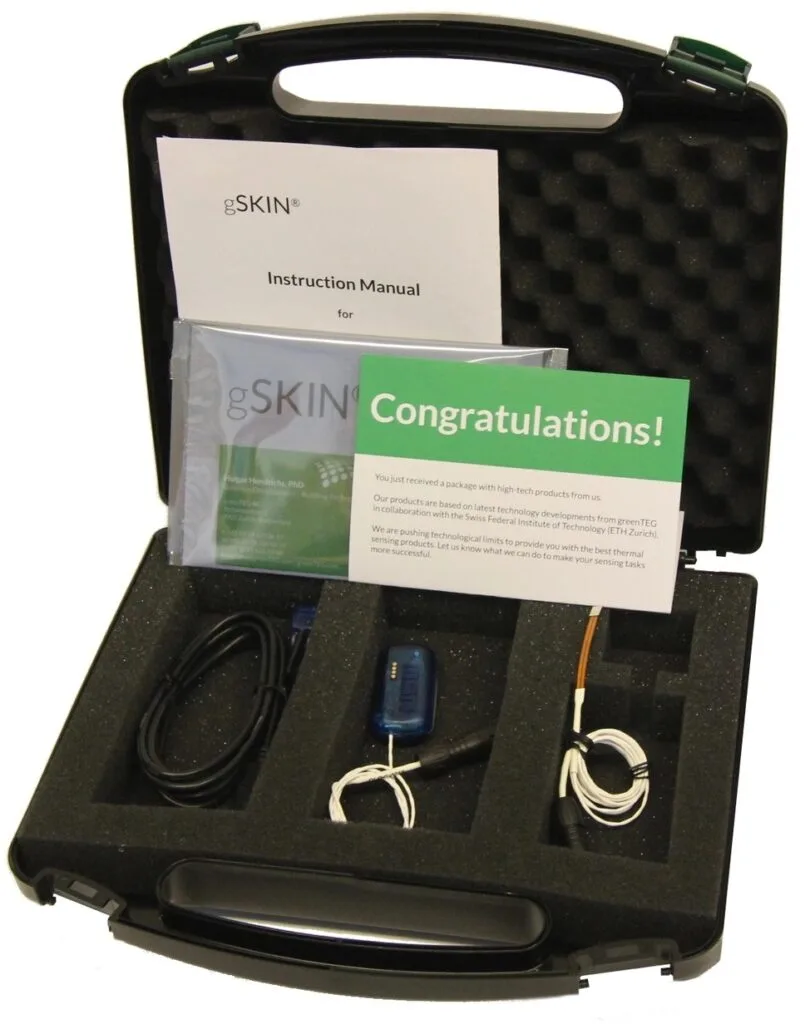

GSKIN Heat Flux Measurement Kit

GSKINKIT-1583C

£1,006.16

gSKIN Heat Flux Kit for broad range heat flux monitoring. Range ±500.0W/m² with a resolution of 0.41W/m². Sensor size 4.4mm x 4.4mm. Data logger has a logging frequency of 50Hz to every 12 hours and storage for up to 2 million readings. Kit includes: MSR Logger, DLOG-4219; Sensor, GSKIN-XM279C; 1.5m cable, 0.5m logger & 1m sensor (with connectors); and double sided mounting tape. Data logger is configured for the calibration settings of the supplied probe.
MORE INFO
Add to basket

GSKINKIT-1586R

£612.85

gSKIN Thermal Radiation Kit for power measurements of solar, laser and LED sources. Range 0-12mW with a resolution of 9W. Sensor size 4.4mm x 4.4mm. Data logger has a logging frequency of 50Hz to every 12 hours and storage for up to 2 million readings. Kit includes: MSR Logger, DLOG-4219; Sensor, GSKIN-XE479R; 1.5m cable, 0.5m logger & 1m sensor (with connectors); and double sided mounting tape. Data logger is configured for the calibration settings of the supplied probe.
MORE INFO
Add to basket

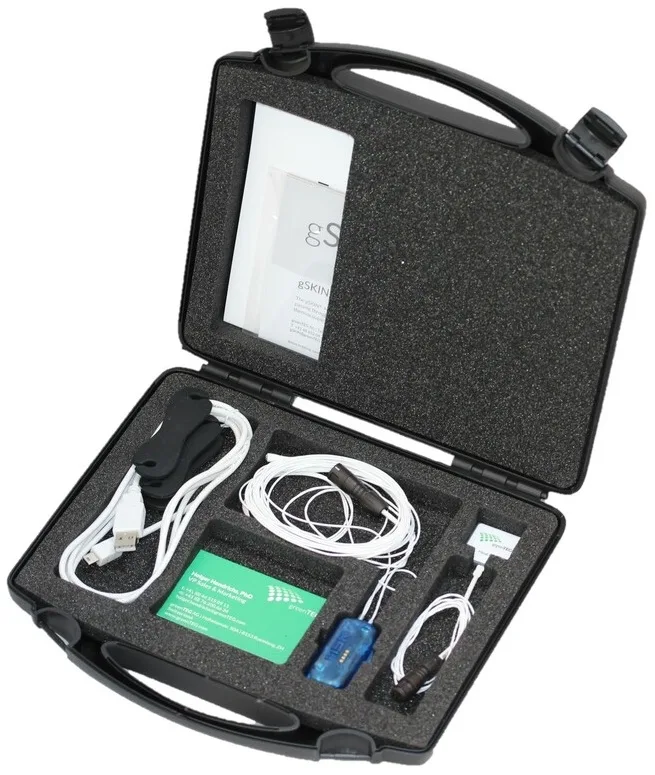

GSKIN U-Value and Heat Flux Measurement Kit

GSKINKIT-2615C

£1,816.05

gSKIN U-Value Kit for measurement of u-value, heat flux and 2 temperature readings. Range ±300W/m² with a resolution of 0.22W/m². Sensor size 30mm x 30mm. Data logger has a logging frequency of 50Hz to every 12 hours and storage for up to 2 million readings. Kit consists of MSR Logger, DLOG-4231; Sensor, GSKIN-X0677C; 2 external temperature probes (1m & 5m cables); carry case; and Mounting tape (MOUNT-1235). Data logger is configured for the calibration settings of the supplied probes.
MORE INFO
Add to basket

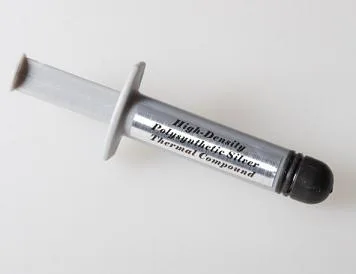

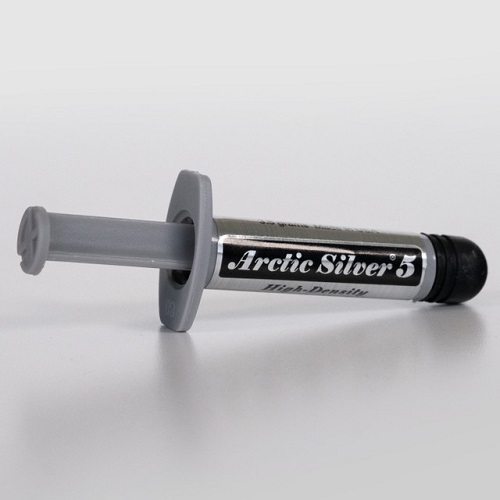

MOUNT-1212. Thermally Conductive Mounting Paste

MOUNT-1212

£33.54

3.5g Tube of Thermally Conductive and Electrically Insulating Thermal Paste. Operating temperature range -50 to +130°C, thermal conductivity 9.0W/(mK). Ideal for applications where pressure is applied to fix the sensor and will provide a very strong thermal coupling as paste will adapt to the surface inhomogeneities.
MORE INFO
Add to basket

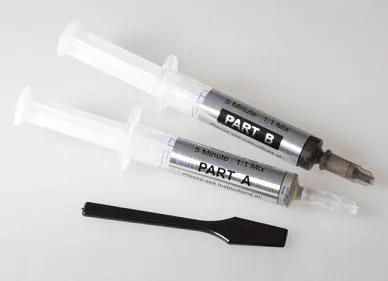

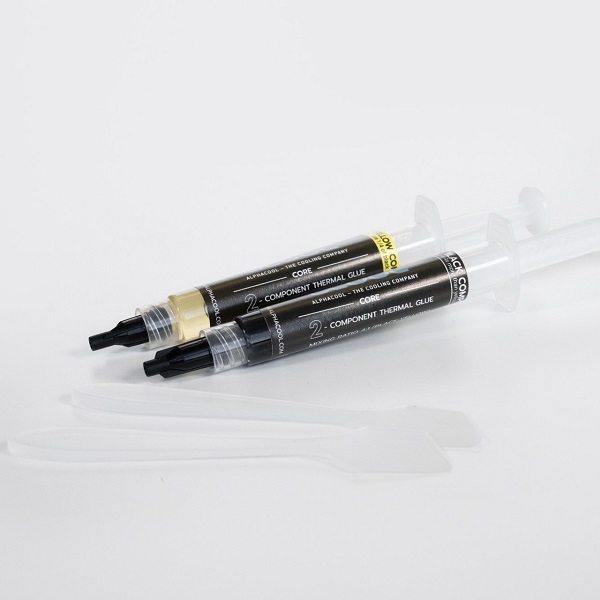

MOUNT-1213

£43.48

Thermally conductive and electrically insulating thermal glue. 2 x 3.5g tubes, operating temperature range -40 to +150°C, thermal conductivity 7.5W/(mK). Ideal for applications requiring additional mechanical stability.
MORE INFO
Add to basket
