Description

Features

• Data Logger with integral modem for 2G, 3G and 4G mobile networks
• 2 Analogue Inputs: 0-1vDC (Resolution 0.1mV); 0-10vDC (Resolution 1mV); 4-20mA (Resolution 1uA); PT100 (1 Input only)
• 4 Digital I/Os: Transistor Type, Input activation +7vDC to 50vDC Max. Output: 50vDC @ 200mA Max.
• 4 Pulse Input: Max 45Hz, 10ms min.
• Can be used anywhere in the world with GSM/GPRS.
• Fully user programmable via windows software with custom scripting programming.
• Configuration for channel labels, scaling, alarm levels etc. via web interface
• 10-30vDC power supply (150mA at 12vDC, 100mA @ 24vDC)
• Unit stores up to 100,000 readings if the network connection be lost and uploads readings when the connection is re-established
• Unit can be configured to send direct SMS messages on alarm conditions

The GRD has 3 LEDs indicators.

PWR: Power applied to the GRD
GPRS: State of registration of the GRD in the GPRS network (GPRS, EDGE, 3G)
LINK: State of the connection between the GRD and the Middleware

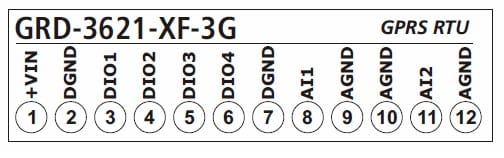

Wiring Diagram

Power supply, 10-30vDC.
