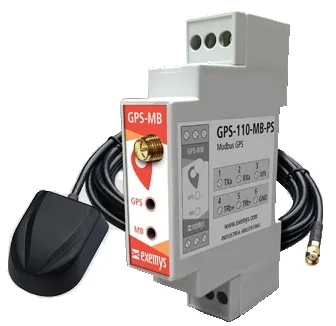

GPS Sensor with Modbus Output - GPS-MB

Description

Features

  • GPS, Galileo and Glonass Constellations
  • 1 x RS485 Modbus ASCII/RTU Slave Port for GPS Data
  • 1 x RS232 NMEA 0183 Port for Configuration
  • LED Status Indicators
  • Supplied with Magnetic Antenna and 3m cable
  • 10-30vDC Power Supply
  • DIN Rail Mounting

GPS Data Available

  • Latitude
  • Length
  • Altitude
  • Geoidal Separation
  • True Course
  • Magnetic Variation
  • Speed
  • Surface Speed
  • GPS Quality
  • Number of Satellites
  • Age Differential GPS Data
  • Horizontal Accuracy
  • UTC Date
  • UTC Time
  • Signal Status
  • Autonomous or Differential Mode

Specifications

Communication Protocols: Modbus RTU or ASCII, NMEA 0183
Serial Port: 1 x RS 232 + 1 x RS485 via Terminal Blocks
Device Management: RS232 Serial Configuration Console
LED Indicators: GPS Data, Modbus Data
GPS Data: GPS, Galileo, Glonass
GPS Antenna: Active with Magnetic Mounting, 3m cable and SMA connector.
Time for first cold data: 35 seconds with 1 second update rate
Accuracy: 3ms for position, 0.1m/s for speed
Power Supply: 10 to 30vDC
Power Consumption: 26mA @ 12V, 18mA @ 24V
Dimensions: 90 x 12.5 x 57mm
Operating Temperature: -15 to 65°C, Storage: -40 to +75°C
Warranty: 1 Year
