GMX560 Marine Weather Station for Wind, Temp, RH & Pressure

GMX560 Marine Weather Station for Wind, Temp, RH & Pressure

The MaxiMet GMX560 Marine is similar to the GMX500 with an improved environmental protection, IP68, 6-axis compass and M12 Connection. Allowing it to survive harsh weather conditions encountered by buoys and unmanned surface vessels, including short-term immersion and compensation for tilt with pitch and roll data. The combined instrument is mounted inside three double louvered, naturally aspirated radiation shields, taking ambient temperature, humidity and pressure readings. Wind speed and direction is measured using an ultrasonic sensor above the main housing. Outputs are available as RS232, RS485. SDI12, NMEA and MODBUS.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

GMX560 Weather Station

Datasheet

Maximet Accessories

Description

Features

  • MaxiMet Marine GMX560 provides 5 measured parameters: Wind speed & direction, temperature, humidity and pressure,
  • IP68 environmental protection allowing short-term immersion
  • 6-axis compass for tilt compensation, plus pitch and roll readings.
  • High quality, accurate, solid-state sensors.
  • Compact design with robust construction.
  • Multiple additional derived parameters
  • Optional integrated GPS capability available to provide location, GPS timestamp and calculation of true wind if the platform isn’t fixed.
  • Commonly available connector suitable for corrosive environment.
  • Optional low power heating.

Applications

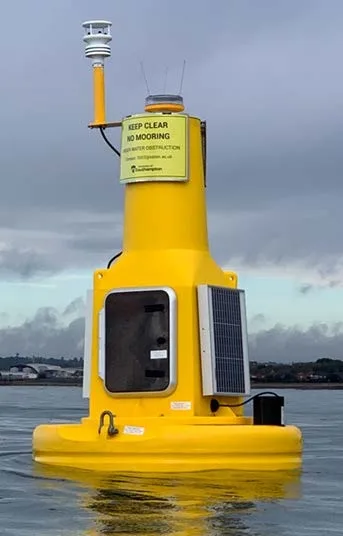

  • Marine environments including: Marine buoys; Unmanned surface vessels.
  • Helidecks.
  • Offshore wind farms.
  • Low power deployments and IoT applications.

Wind

  • Relative Wind Speed & Direction. Relative to the North Marker
  • Average Wind Speed & Direction. Short and Long Term Averages
  • Compass Corrected Wind. Corrected to Magnetic North
  • True Wind & Direction. Corrected by GPS & Compass (Option).
  • Gust Speed & Direction (WMO)
  • Corrected Gust Speed & Direction (WMO) (Requires GPS)

Temperature & Relative Humidity

  • Air Temperature and Relative Humidity
  • Calculated Dew Point and Absolute Humidity
  • Wet Bulb Temperature (When Temperature <-20 and <50°C, 5-99%RH)
  • Heat Index (When Temperature >23.88°C)
  • Wind Chill (When Temperature <10°C and wind speed >1.5m/s

Barometric Pressure

  • Barometric Pressure
  • Pressure at Sea Level
  • Pressure at Station
  • Air Density

GPS (Option)

  • GPS Location (Longitude, Latitude)
  • GPS Height
  • Real Time Clock
  • GPS Heading
  • GPS Speed
  • GPS Status
  • Number of Satellites Visible

Inclinometer/Compass

  • 3-Axis Compass Heading &  3-Axis Pitch and Roll
  • Compass Reading (0-359° Magnetic North)
  • ±89.9° X -Tilt. +ve Unit Tipped East, -ve West
  • ±89.9° Y -Tilt. +ve Unit Tipped North, -ve South
  • Z Orientation, +1 Normal Upright, -1 Inverted Position
  • X & Y Can Provide 2 Decimal Points for Easy Installation.

Additional Parameters

  • Twilight. (Civil, Nautical and Astronomical)
  • Time of Sunrise, Solar Noon, Sunset (Location Required)
  • Position of the Sun
  • Supply Voltage
  • System Status
  • System Time and Date (RTC with GPS Option)
  • Custom User Information (up to 16 character)

Parameter Specifications

Parameter Range Resolution Accuracy Units of Measure
Wind Speed 0-60m/s 0.01m/s 3% (0-40m/s)
5% (40/60m/s)		 m/s, Km/h, mph,
kts, ft/min
Wind Direction 0-359° No Dead Band 1° ±3° (0.01-40m/s)
±5° (40-60m/s)		 Degrees
Compass 0-360° 1° ±3° Degrees
Temperature -40 to +70°C 0.1°C ±0.3°C °C, F or °K
Humidity 0-100%RH 1%RH Typically ±2%RH %RH, g/m²
Dew Point -40 to +70°C 0.1°C ±0.3°C °C, F or °K
Pressure 300-1,100hPa 0.1hPa ±0.5hPa hPa, mBar, mmHg, InHg

GMX560 Specifications

Output Rate: 1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode
Digital Comms: RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII
Power Supply: 5-30vDC (10-35vDC with Heating)
Consumption @ 12vDC: 24mA (GPS +10mA, Heating +400mA)
IP Rating: IP66 & IP68 Rated (1m for 1 hour)
Operational Temperature Range: -35 to +70°C (-40 to +70°C with Heating)
CE Marking: Yes

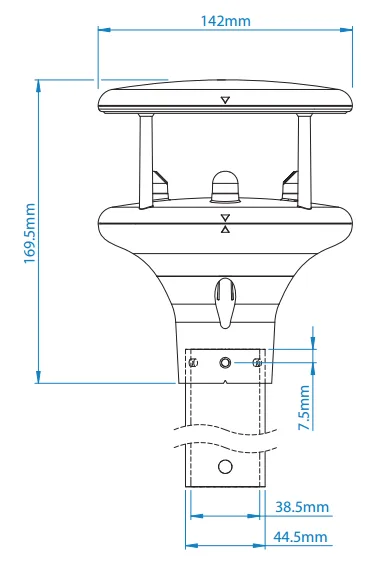

Dimensions: 222 x 142 x 142mm
Weight: 0.4Kg
Origin: UK
Warranty: 24 Months

Product

Ref

Price

Product Description

1957-0560-60-000

£1,841.00

MaxiMet Marine GMX560 Compact Weather Station. Measured Parameters: Relative Wind Speed and Direction, Air Temperature, Relative Humidity, Barometric Pressure and 6-Axis Compass. Compass allows compensations for tilt and provides pitch & roll data. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, MODBUS. Power Supply: 5-30vDC (Consumption 25mA @ 12vDC).
MORE INFO
Add to basket

1957-0560-60-100

£2,034.00

MaxiMet Marine GMX560 Compact Weather Station with GPS. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, 6-Axis Compass Heading, GPS Location, Heading and Speed. Compass allows compensations for tilt and provides pitch & roll data. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, True Wind Speed and Direction correcting for misalignment or motion, Height above Sea Level, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index,  Absolute Humidity, Air Density and Pressure at Sea Level. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 5-30vDC (Consumption 34mA @ 12vDC).
MORE INFO
Add to basket

1957-0560-60-001

£1,925.00

MaxiMet Marine GMX560 Compact Weather Station with Heating. Measured Parameters: Relative Wind Speed and Direction, Air Temperature, Relative Humidity, Barometric Pressure and 6-Axis Compass. Compass allows compensations for tilt and provides pitch & roll data. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, MODBUS. Power Supply: 10-30vDC (Consumption 425mA @ 12vDC).
MORE INFO
Add to basket

1957-0560-60-101

£2,115.00

MaxiMet Marine GMX560 Compact Weather Station with GPS and Heating. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, 6-Axis Compass Heading, GPS Location, Heading and Speed. Compass allows compensations for tilt and provides pitch & roll data. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, True Wind Speed and Direction correcting for misalignment or motion, Height above Sea Level, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index,  Absolute Humidity, Air Density and Pressure at Sea Level. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 10-30vDC (Consumption 434mA @ 12vDC).
MORE INFO
Add to basket

1957-PK-155

£157.33

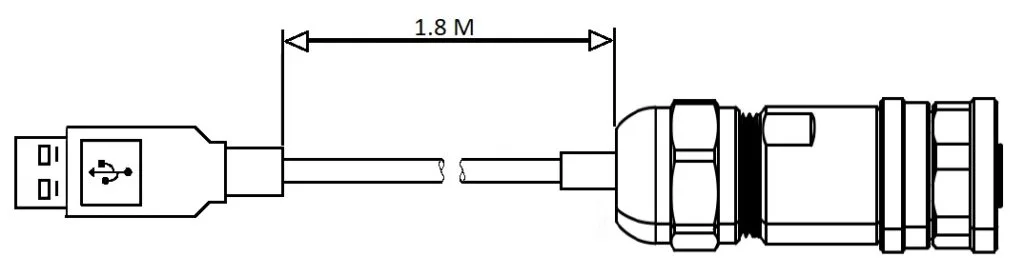

1.8m M12 to USB Configuration Cable for the Maximet Marine, GMX560, Weather Stations. Configuration cable provides 5V power to the Maximet and allows for an RS232 Connection to a PC for the initial set up and configuration. GMX should be in Safe Mode to allow for configuration and the adaptor cable is not weatherproof and should not be used one units are installed on site.
MORE INFO
Add to basket
